SPUR planetarium Gearbox

SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox

Quadratum output LABIUM / Size range: 40-160mm

Operating Temperature: -25 ° C XC

Torque range: 4.5-800n.m

  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
  • SPF Series XL LX LXXX CXX CLX calcar planetarium Gearbox
Nullus articulus prior   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

SPF series sunt cum platea output flanges, accommodando dimensiones a 40mm ad 160mm. Haec flanges sunt machinatum est excellere in variis industriae applications, offering certa perficientur per spectro de requisitis. Cum a temperatus tolerantia spanning ex -25 ° C XC ° C, sunt idoneam environments cum diverse scelerisque conditionibus, ensuring operational mollitiam in utroque frigore et moderatur calor.

Unum ex clavis ornare ipsum SPF serie mendacium in eius infigo torque range, spanning a 4.5 n.m. ad robust DCCC N.m. hoc extensive Torque capability empillers isti pertractat et operationes ad gravibus-officium applications postulantes inquisitiones ad pondus, afficiens, afficiens ad operationes ad gravibus, ex Poscuisset.

Disposito cum animum ad detail, SPF seriem involvunt diuturnitatem, praecisione, et versatility. Utrum adhibetur in machinatione, automation systems, seu industriae processus, haec flanges exhibent consistent perficientur et reliability, conlatis ad amplificationem operational efficientiam et productivity.

In quadrata output consilio horum flanges ensurs compatibility cum variis apparatu configurations, facilius seamless integrationem in existentium systems. Hoc adaptability streamlins installation processus et minimizes downtime, optimizing altiore workflow efficientiam.

SPF seriem repraesentat pinnaculum ipsum excellentiam, combining robust constructione, versatile functionality, et praecisa perficientur ad occursum diversis necessitatibus modern industriae environments.

Technical Information

Exemplar Unitas SP40 SP60 SP80 SP120 SP160 Calces Ratio Scaena
Rated output Torque N.m 4.5 12 40 80 400 3 1
6 16 50 100 450 4
6 16 50 110 450 5
5 15 45 120 450 8
5 15 45 120 305 10
16.5 44 110 210 400 9 2
18 44 120 260 800 12
18 40 110 230 700 15
20 44 120 260 800 16
20 44 120 260 800 20
18 40 110 230 700 25
20 44 120 260 800 32
18 40 110 230 700 40
7.5 18 50 120 450 64
20 44 120 260 800 60 3
20 44 120 260 800 80
20 44 120 260 800 100
18 40 110 230 700 120
20 44 120 260 800 160
18 40 110 230 700 200
20 44 120 260 800 256
18 40 110 230 700 320
7.5 18 50 120 450 512

Exemplar Numerus SP40 SP60 SP80 SP120 SP160
Torsional rigor 0.7 1.8 4.5 12 38
Sonitus campester 55 58 60 65 70
Max Input celeritate ( rpm ) 10000 8000 6000 6000 6000
Conmendo Input celeritate ( rpm ) 4500 4000 4000 4000 3000
Max RATIALIS torque (N) 160 340 650 1500 4200
Max AXIBILIS torque (N) 160 450 900 2100 6000
Operating temperatus -25 ℃ ~ XC ℃
IP P54
Lubriciae Tempus lubriciae
Type Quis directionem

60spf series dimensiones

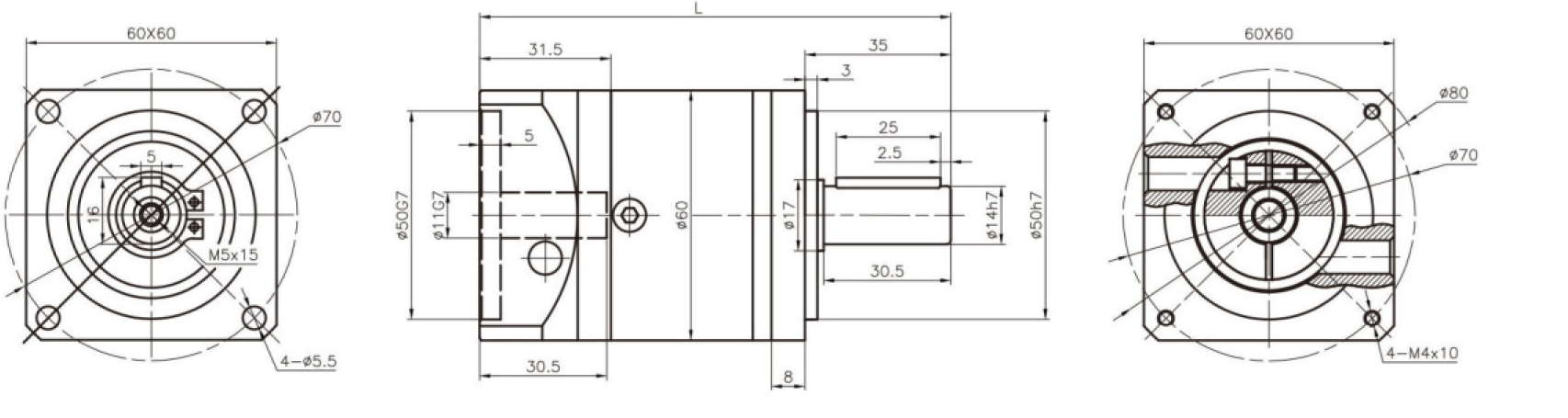

200W Dimensions


Summa longitudo I-scaena II-scaena III-scaena
L 117.1 135.1 138.5

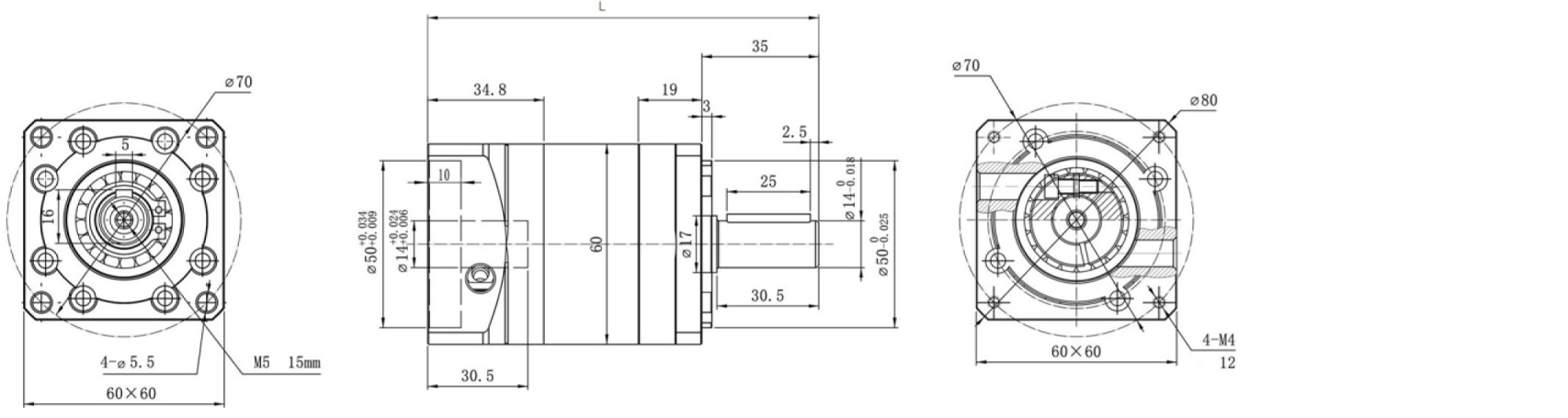

400W Dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 117.1 135.1 138.5

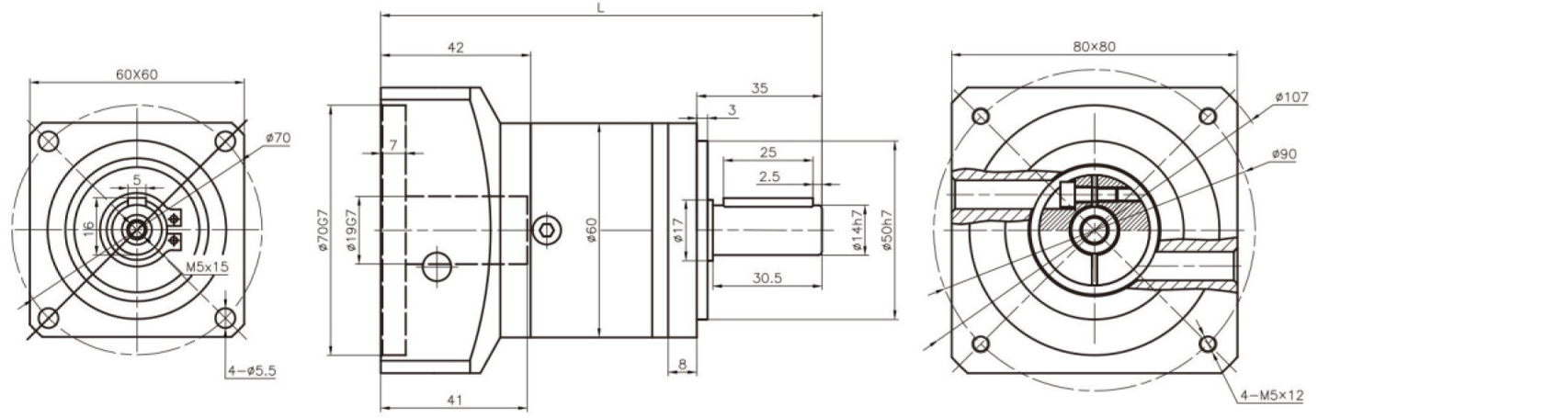

750w dimensiones (secundo arbitrium)


Summa longitudo I-scaena II-scaena
L 123.5 136.5

80spf series dimensiones

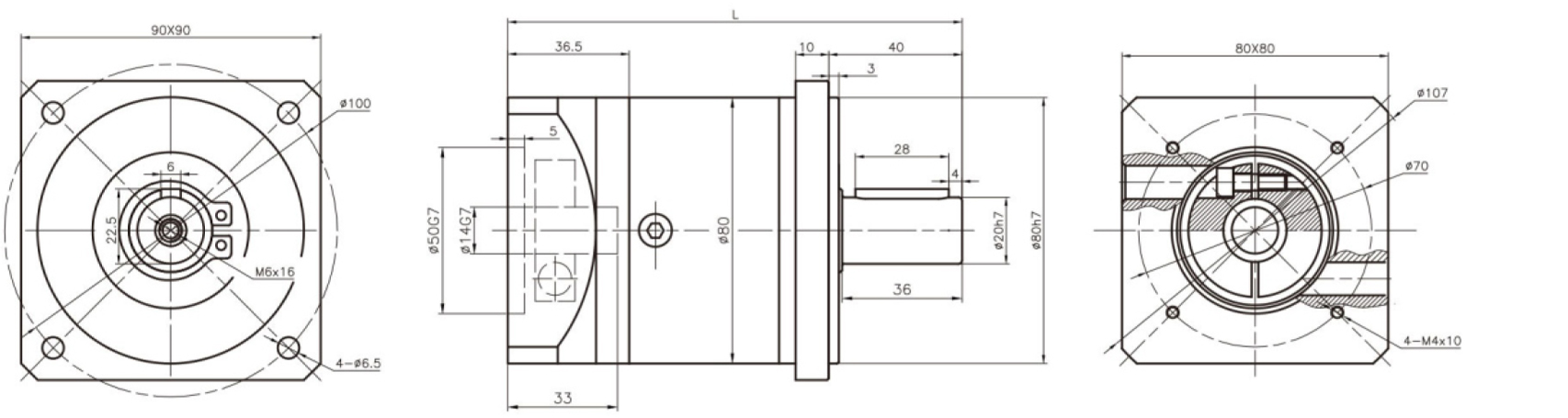

400W Dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 136.5 154.5 172

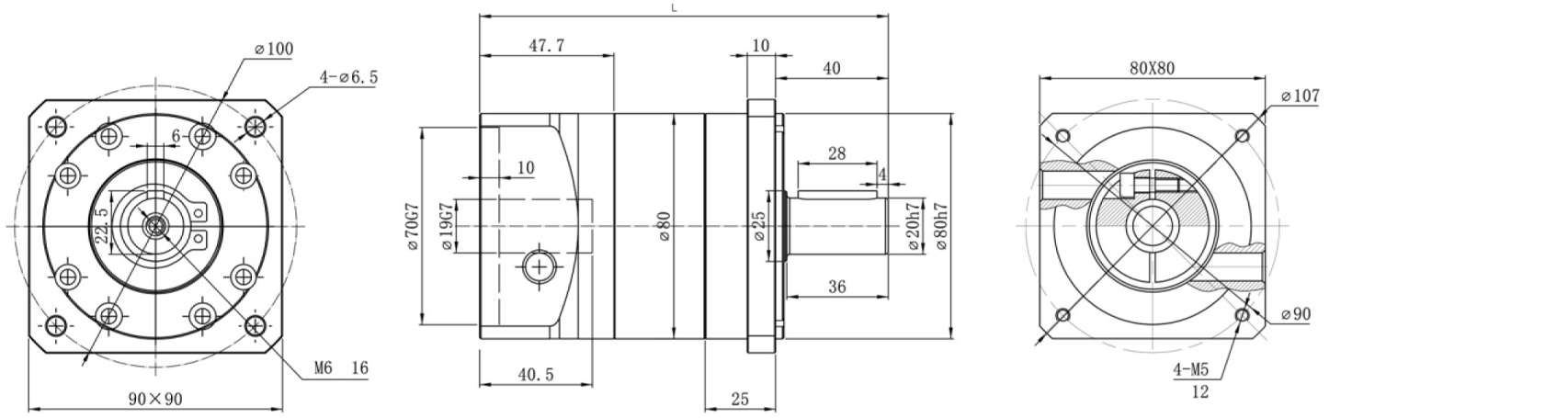

750w dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 145 166.5 179

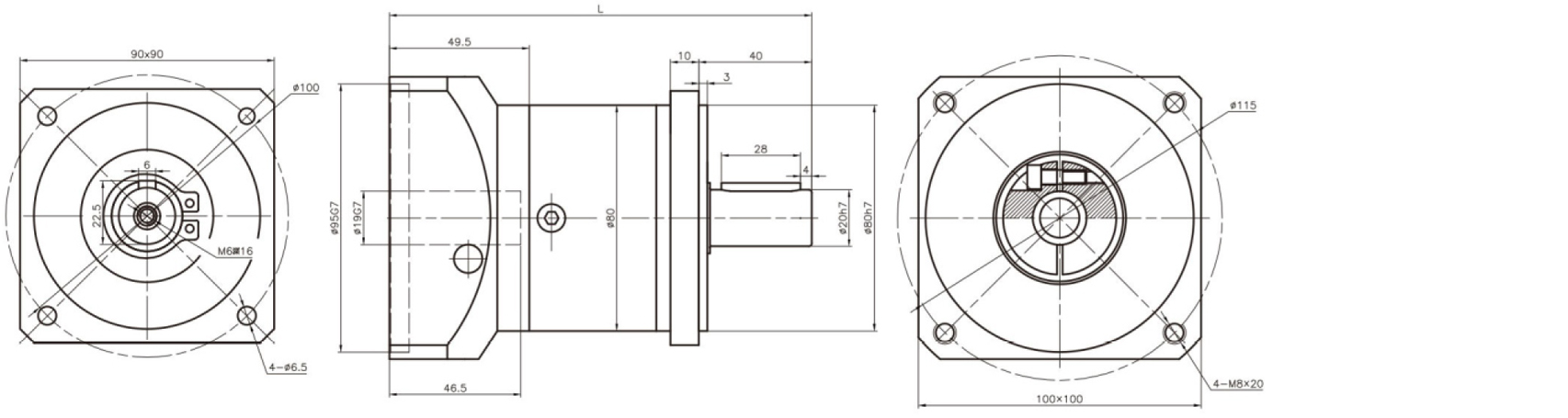

1000w dimensiones (secundo arbitrium)


Summa longitudo I-scaena II-scaena
L 163.5 181.5

120spf series dimensiones

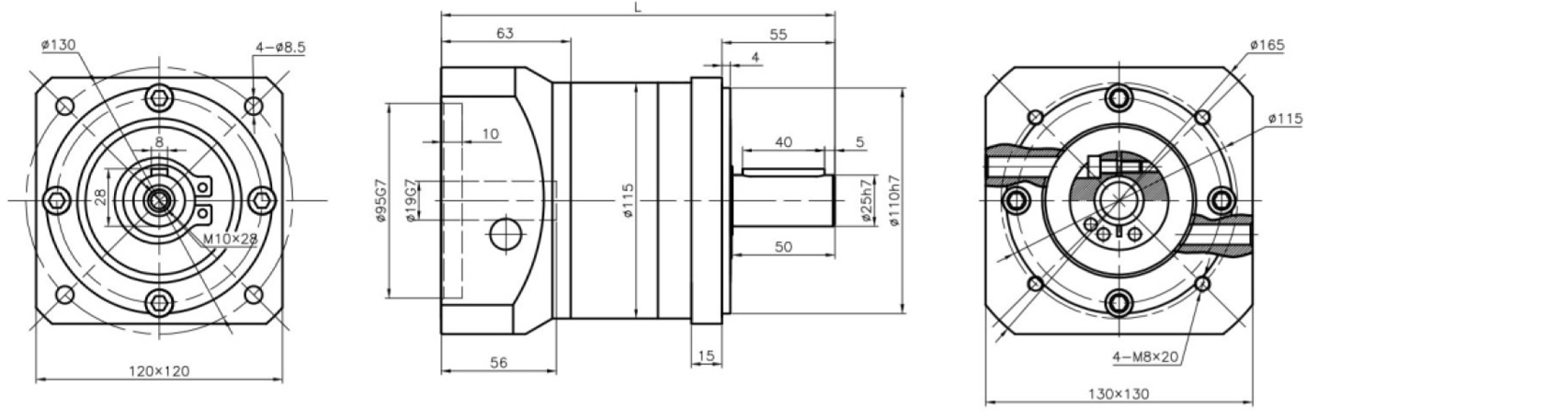

1000w dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 191.7 223.7 243

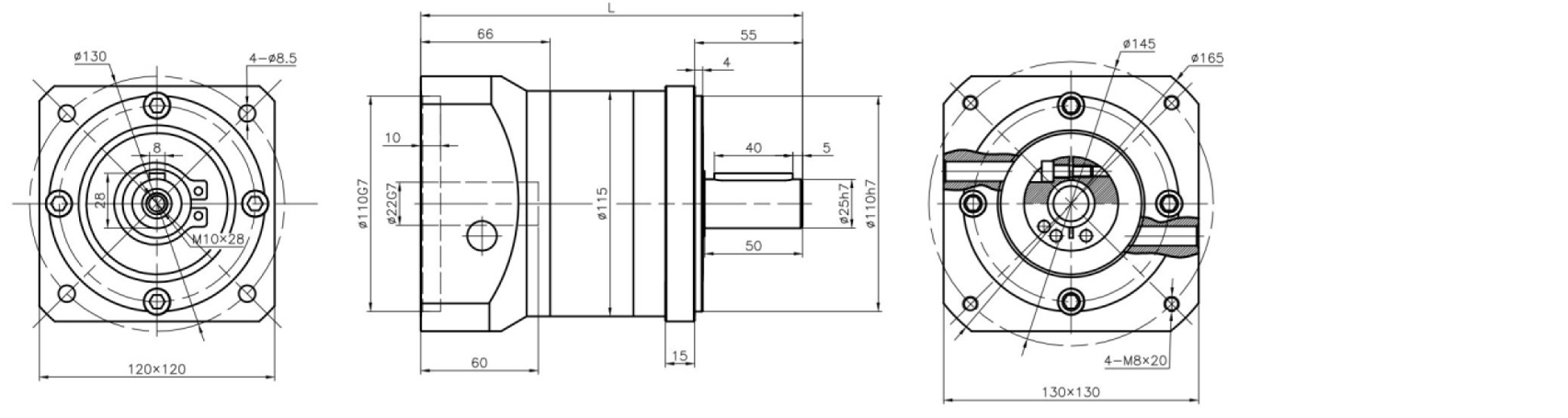

2000W dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 194.7 227.7 247

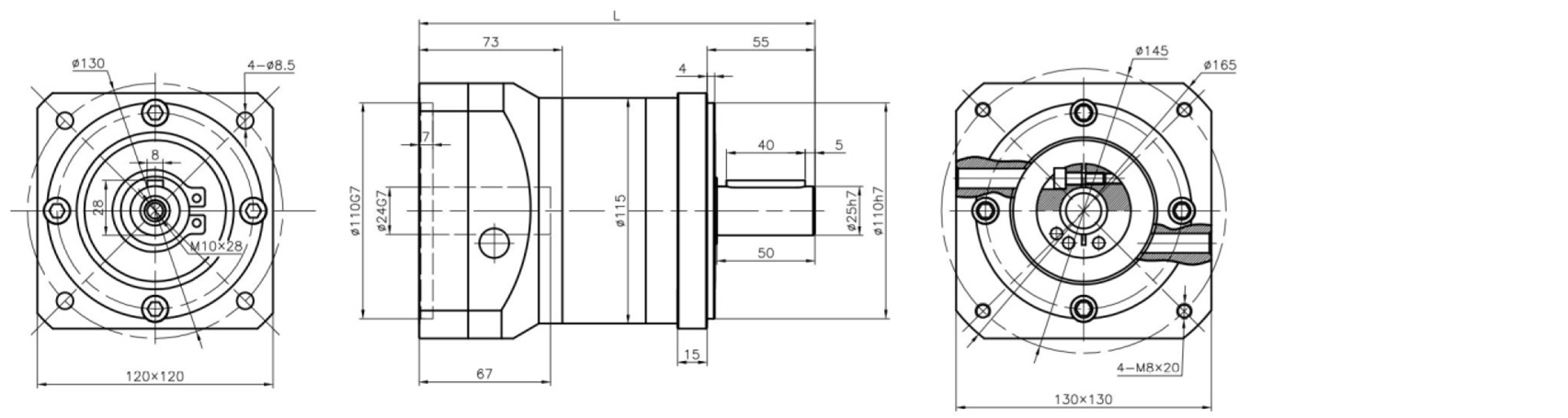

3000W Dimensiones (Second electionis)


Summa LENDO h I-scaena II-scaena
L 201.7 235.2

160spf series dimensiones

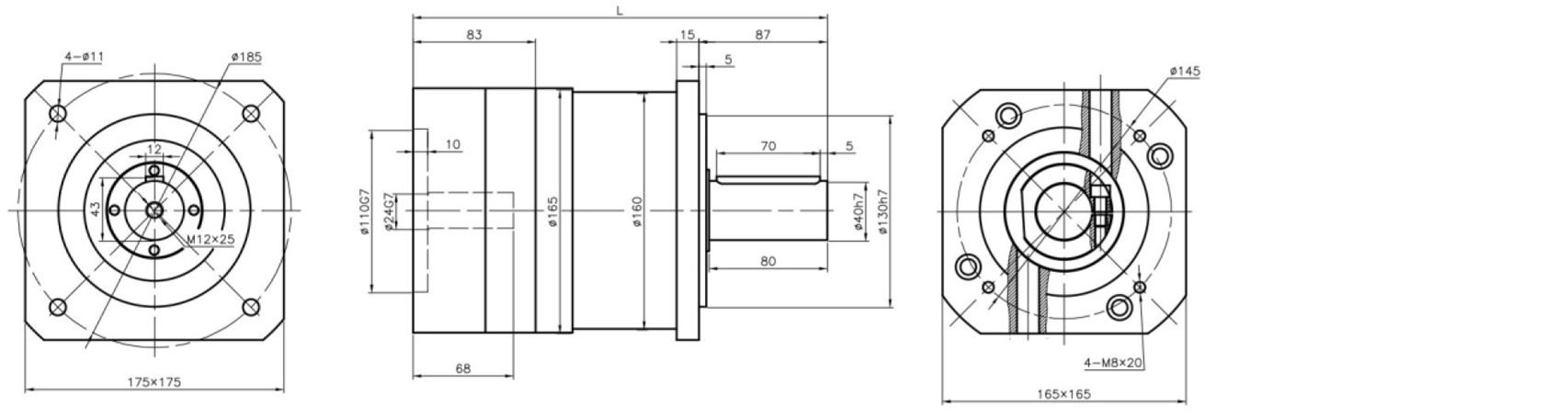

3000W Dimensiones


Summa longitudo I-scaena II-scaena III-scaena
L 280.5 321.5 363

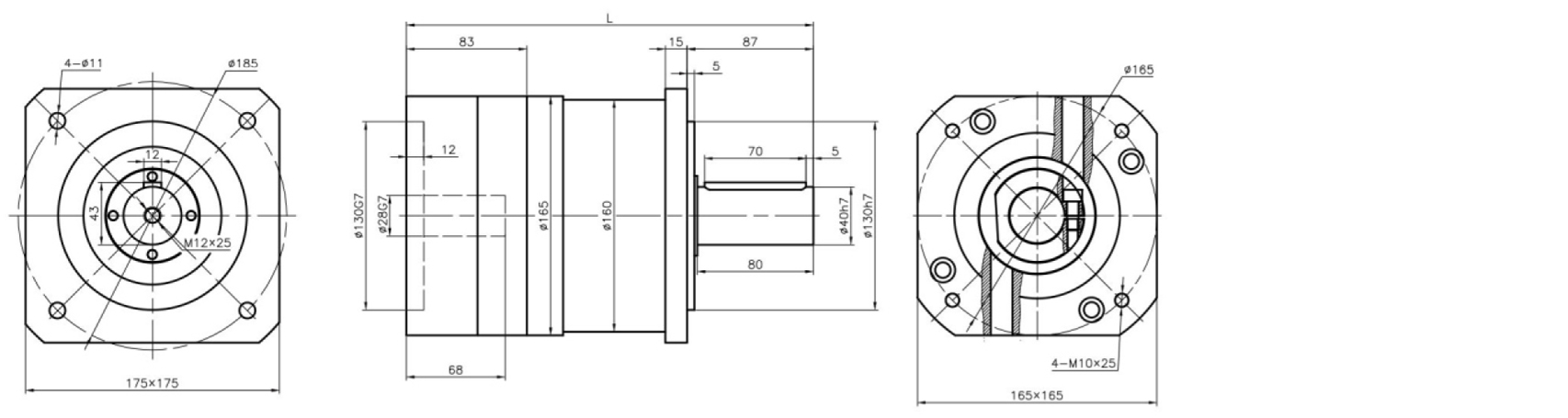

4000p dimensiones


Summa longitudo I-scaena II-scaena II-scaena
L 280.5 321.5 363

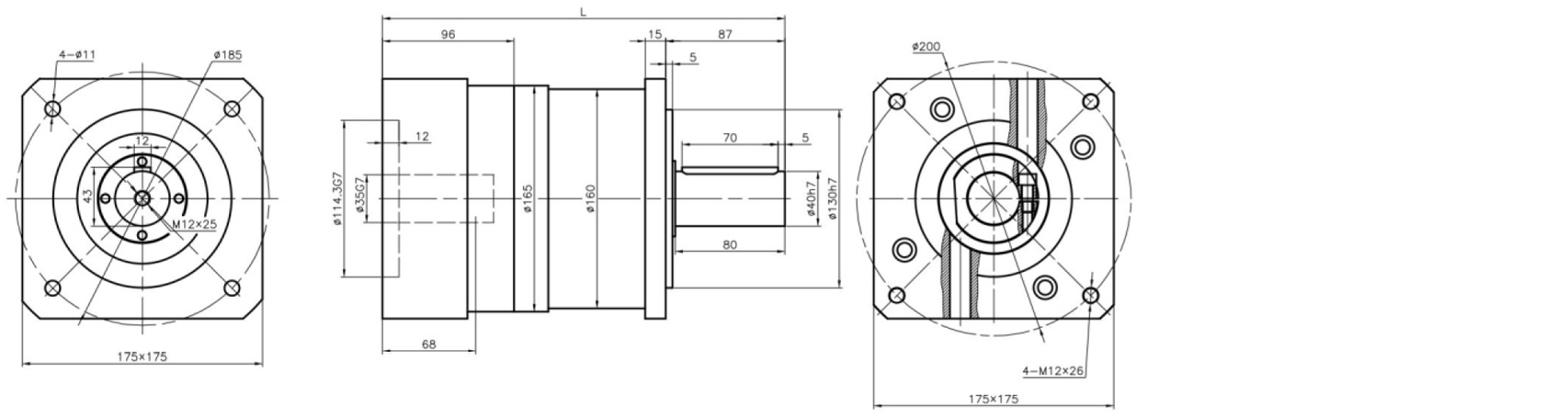

5000W Dimensiones (Second electionis)


Summa longitudo I-scaena II-scaena
L 293.5 334.5
+ Parametra producti accurata intellege
