Helical planetarium Gearbox

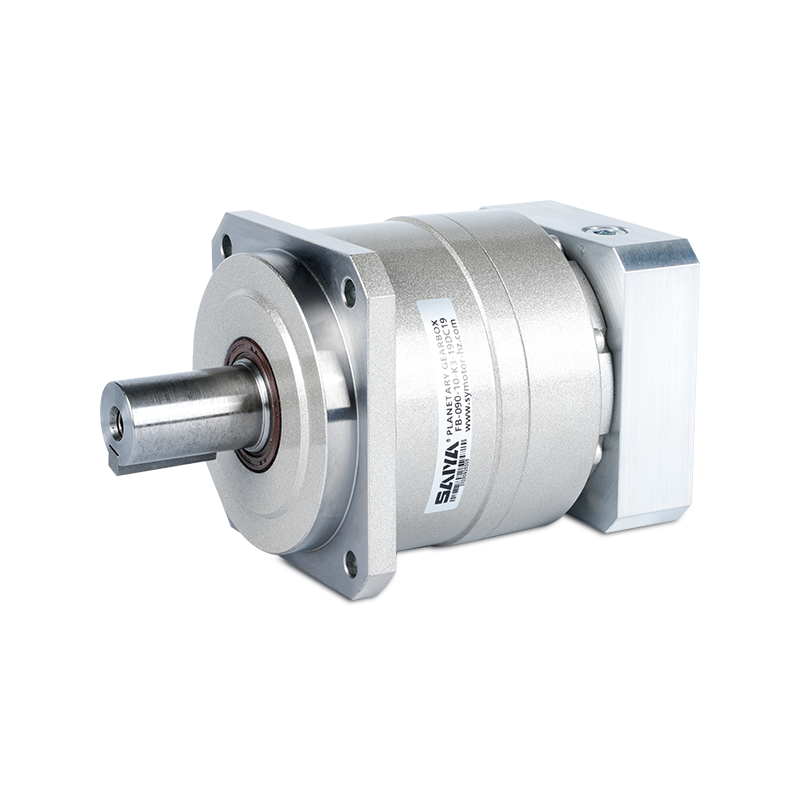

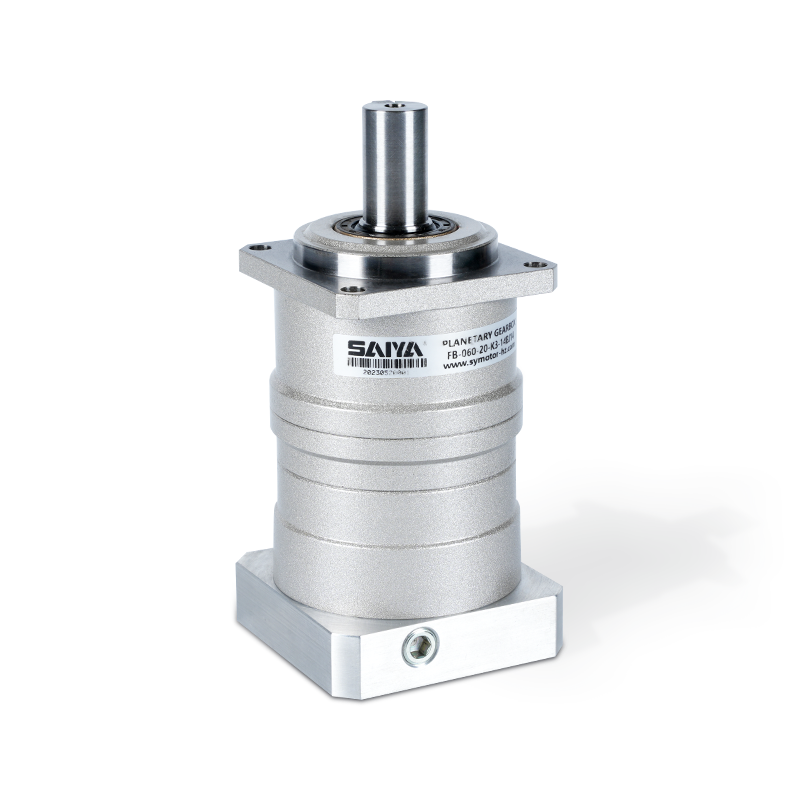

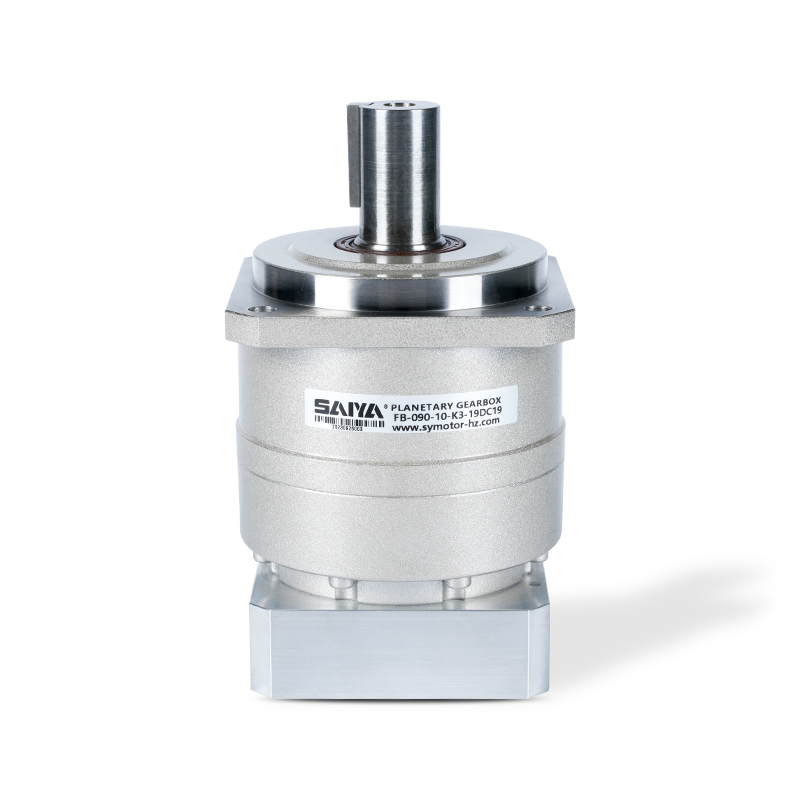

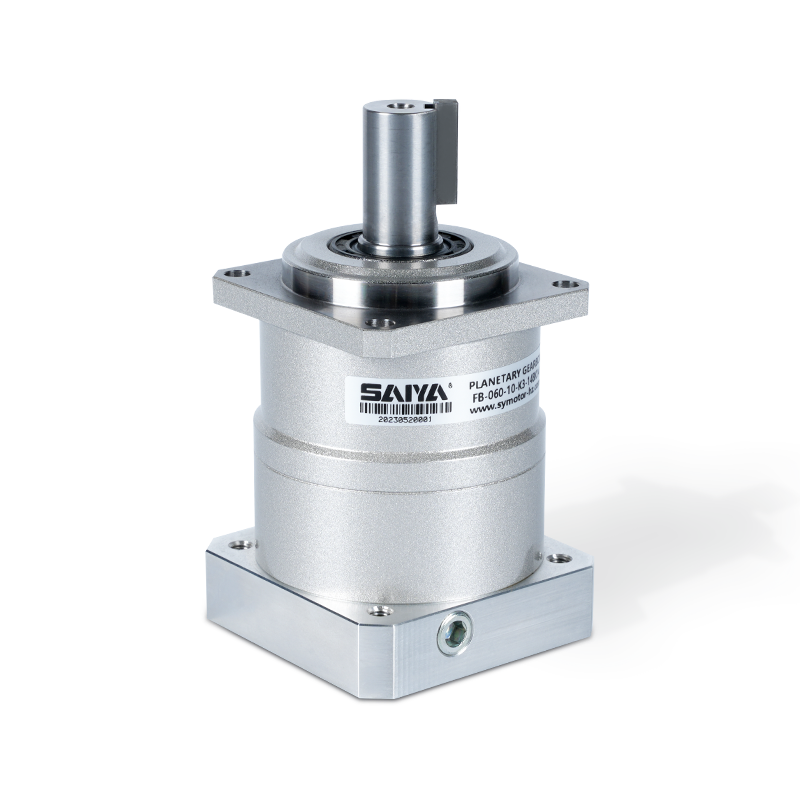

FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox

FB Helical calces seriem / Quadratum LABIS output / Helical calces / Reduction Ratio: 3-100

Redi Clearance: 3-5 Armmin

  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
  • FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox
PRAECEDENS   |   Nullus articulus proximus

+ Contacta nos + Catalogus Deprehensus Video Producti

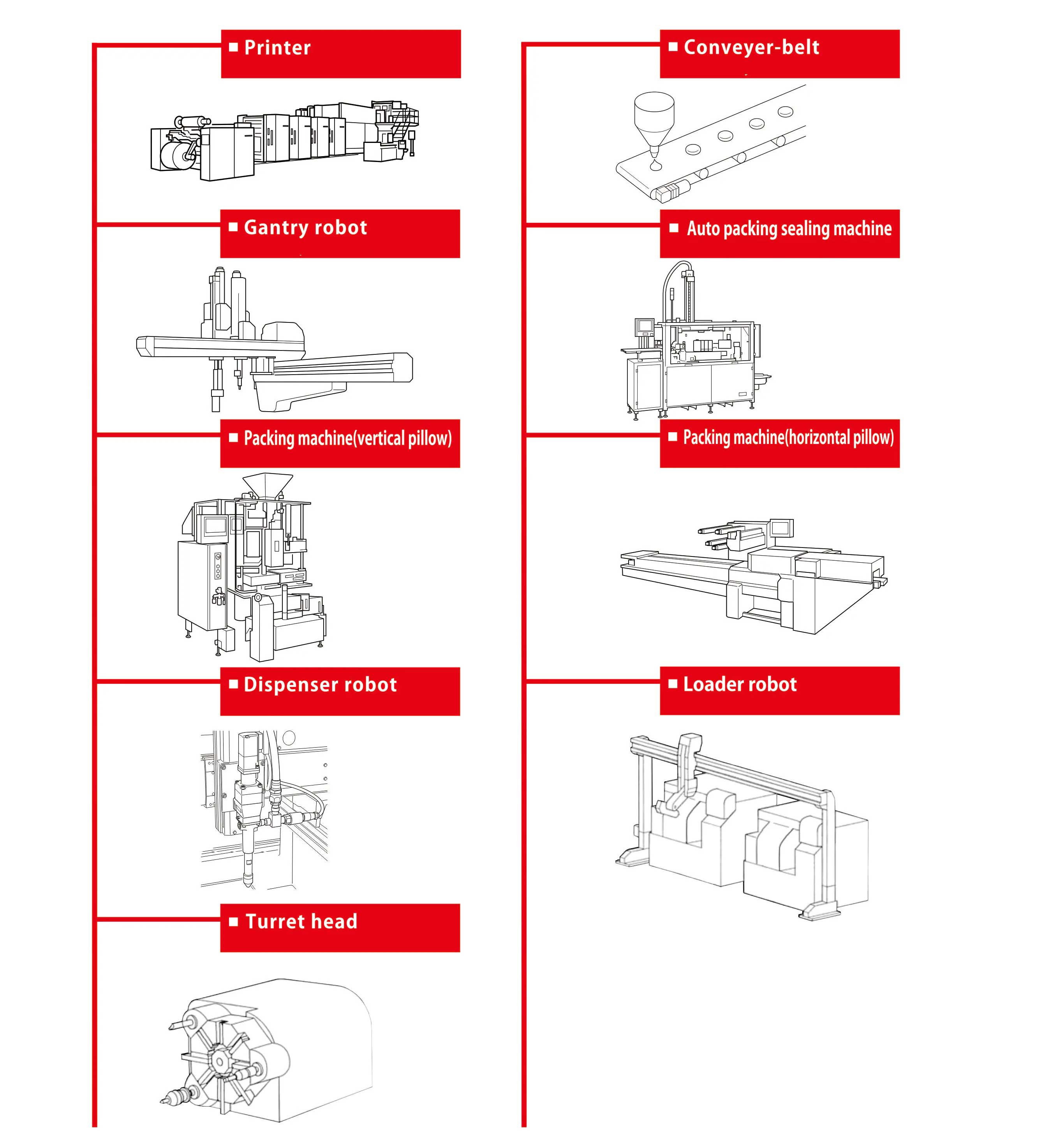

APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

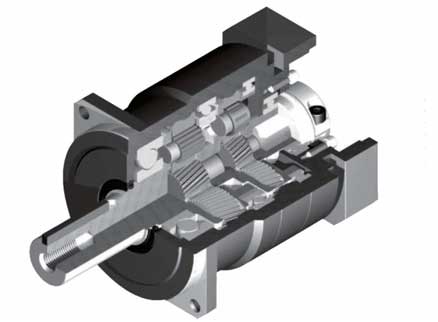

In FB series Gearboxes, clarus pro eorum praecisione et reliability, offer a wide de options ad sectam variis industriae applications. Cum a consilio focused in efficientiam et perficientur, haec gearboxes sunt instructa cum Helical Gears quod ensure lenis operationem et minimal strepitus campester.

Featuring a Quadratum LABIUM output configuratione, in FB series est machinery integrationem integrationem in seamless providere in diversis machinery setups. Et inclusion Helical Gears in his Gearboxes Enhances Tortum Transmissus dum redigo backlash, unde in potentia translatio et amplificata imperium in celeritate ordinacione.

Unum ex insignes attributa FB series est eius versatile range of calces suomatis, range ex 3-100K. Haec lectio enables users ad scissor in Gearbox ad propria necessitatibus, utrum involvit summus celeritate applications vel postulantes torque requisita. Praeterea, in Gearbox offert a praecisam backlash range de 3-5 arcemminutes, cursus accurate positioning et minimal ludere per operationem.

Utrum adhibetur in robotics, automation, aut quis alius industria occasum ubi praecisione et reliability sunt paramunt, in fb seriem gearboxes stat ut a solution. Et robust constructione, copulata cum provectus gearing technology, ensures longa-term perficientur et efficientiam, faciens illud maluit electionis pro fabrum et manufacturers Worldwide.

Quietam operatio

Helicas Gears contribuere ad redigendum vibrationem et strepitu.

Excelsum

Latin backlash est V arcu-min, idealis pro praecisione imperium.

Maxime rigiditatem & torque

Maximum rigiditatem et altum torque effectum indocta acus acus cylindro gestus.

Nibh-bushing nexu

Potest coniuncta ad omnem motricium toto orbe terrarum.

Nulla uncto Leakage

Perfect solution per altum viscositas anti-separationem uncto.

Sustentacionem-Free

Non opus ad reponere ad uncto ad vitam unitatis potest esse attachiatus in aliquo situ.

FB-XLII ※ I ※ II ※ III ※ IV ※ V ※ VI VII ※
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Subitis subsisto torque Nominal
initus celeritate 		Maximus
initus celeritate 		Licentiosus
onus 		Licentiosus
AXIALIS
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
42 I uno 3 6 12 30 4000 8000 240 270
4 9 18 35 4000 8000 270 300
5 9 18 35 4000 8000 290 330
6 9 18 35 4000 8000 310 360
7 9 18 35 4000 8000 320 380
8 9 18 35 4000 8000 340 410
9 6 12 30 4000 8000 350 430
10 6 12 30 4000 8000 360 450
II duplex 15 6 12 30 4000 8000 410 540
16 9 18 35 4000 8000 420 550
20 9 18 35 4000 8000 460 610
25 9 18 35 4000 8000 490 640
28 9 18 35 4000 8000 510 640
30 6 12 30 4000 8000 520 640
35 9 18 35 4000 8000 550 640
40 9 18 35 4000 8000 570 640
45 6 12 30 4000 8000 600 640
50 9 18 35 4000 8000 620 640
60 9 18 35 4000 8000 660 640
70 9 18 35 4000 8000 690 640
80 9 18 35 4000 8000 710 640
90 6 12 30 4000 8000 710 640
100 6 12 30 4000 8000 710 640

※ VIII IX ※ X ※
Frame magnitudo Scaena Ratio Maximus radialis onus Maximus AXIBILIS onus Pondus Momentumum ex inertia (≤φ8) Moment ex inertia (≤Φ14)
[N] [N] [kg] [KGCM²] [KGCM²]
42 1 Unius 3 710 640 0.6 0.053 0.17
4 710 640 0.041 0.16
5 710 640 0.036 0.15
6 710 640 0.034 0.15
7 710 640 0.032 0.15
8 710 640 0.031 0.15
9 710 640 0.031 0.15
10 710 640 0.03 0.15
2
Duplex 		15 710 640 0.7 0.035 -
16 710 640 0.038 一
20 710 640 0.034 -
25 710 640 0.034 -
28 710 640 0.038 一
30 710 640 0.03 一
35 710 640 0.034 -
40 710 640 0.03 一
45 710 640 0.034 一
50 710 640 0.03 -
60 710 640 0.03 -
70 710 640 0.03 -
80 710 640 0.03 一
90 710 640 0.03 一
100 710 640 0.03 -

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice exemplar ad modus.

FB-LX ※ I ※ II ※ III ※ IV ※ V ※ VI VII ※
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
radialis onus 		Licentiosus
AXIALIS
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
060 1
Unius 		3 18 35 80 3000 6000 430 310
4 27 50 100 3000 6000 470 360
5 27 50 100 3000 6000 510 390
6 27 50 100 3000 6000 540 430
7 27 50 100 3000 6000 570 460
8 27 50 100 3000 6000 600 480
9 18 35 80 3000 6000 620 510
10 18 35 80 3000 6000 640 530
2
Duplex 		15 18 35 80 3000 6000 740 630
16 27 50 100 3000 6000 750 650
20 27 50 100 3000 6000 810 720
25 27 50 100 3000 6000 870 790
28 27 50 100 3000 6000 910 830
30 18 35 80 3000 6000 930 860
35 27 50 100 3000 6000 980 920
40 27 50 100 3000 6000 1000 970
45 18 35 80 3000 6000 1100 1000
50 27 50 100 3000 6000 1100 1100
60 27 50 100 3000 6000 1200 1100
70 27 50 100 3000 6000 1200 1100
80 27 50 100 3000 6000 1200 1100
90 18 35 80 3000 6000 1200 1100
100 18 35 80 3000 6000 1200 1100
FB-LX ※ VIII IX ※ X ※
Frame
magnitudo 		Scaena Ratio Maximus
onus 		Maximus
AXIALIS 		Pondus Momentumumum
ex inertia
(≤φ8) 		Moment
ex inertia
(≤Φ14) 		Moment
inertiae
(≤Φ19)
[N] [N] [kg] [KGCM²] [KGCM²] [KGCM²]
060 1
Unius 		3 1200 1100 1.4 0.14 0.22 0.43
4 1200 1100 0.095 0.17 0.38
5 1200 1100 0.077 0.16 0.36
6 1200 1100 0.068 0.15 0.36
7 1200 1100 0.062 0.14 0.35
8 1200 1100 0.059 0.14 0.35
9 1200 1100 0.057 0.14 0.34
10 1200 1100 0.056 0.14 0.34
2
Duplex 		15 1200 1100 1.6 0.055 0.14
16 1200 1100 0.057 0.14
20 1200 1100 0.054 0.13 一
25 1200 1100 0.053 0.13 一
28 1200 1100 0.055 0.14 一
30 1200 1100 0.049 0.13 -
35 1200 1100 0.053 0.13
40 1200 1100 0.049 0.13
45 1200 1100 0.053 0.13
50 1200 1100 0.049 0.13
60 1200 1100 0.049 0.13
70 1200 1100 0.049 0.13 一
80 1200 1100 0.049 0.13 一
90 1200 1100 0.049 0.13 一
100 1200 1100 0.049 0.13 一

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

FB-XC ※ I ※ II ※ III ※ IV ※ V ※ VI VII ※
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
radialisis onus 		Licentiosus
AXIBILIS onus
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
090 1
Unius 		3 50 80 200 3000 6000 810 930
4 75 125 250 3000 6000 890 1100
5 75 125 250 3000 6000 960 1200
6 75 125 250 3000 6000 1000 1300
7 75 125 250 3000 6000 1100 1300
8 75 125 250 3000 6000 1100 1400
9 50 80 200 3000 6000 1200 1500
10 50 80 200 3000 6000 1200 1600
2
Duplex 		15 50 80 200 3000 6000 1400 1900
16 75 125 250 3000 6000 1400 1900
20 75 125 250 3000 6000 1500 2100
25 75 125 250 3000 6000 1600 2200
28 75 125 250 3000 6000 1700 2200
30 50 80 200 3000 6000 1700 2200
35 75 125 250 3000 6000 1800 2200
40 75 125 250 3000 6000 1900 2200
45 50 80 200 3000 6000 2000 2200
50 75 125 250 3000 6000 2100 2200
60 75 125 250 3000 6000 2200 2200
70 75 125 250 3000 6000 2300 2200
80 75 125 250 3000 6000 2400 2200
90 50 80 200 3000 6000 2400 2200
100 50 80 200 3000 6000 2400 2200

FB-XC ※ 8 IX ※ X ※
Frame
magnitudo 		Scaena Ratio Maximus
radial onus 		Maximus
AXIBILIS onus 		Pondus Momentumumumum
ex inertia
(≤φ8) 		Moment
ex inertia
(≤Φ14) 		Moment
inertiae
(≤Φ19) 		Moment
inertiae
(≤Φ28)
[N] [N] [kg] [KGCM² ] [KGCM²] [KGCM²] [KGCM²]
090 1
Unius 		3 2400 2200 3.7 一 0.72 1.2 3.2
4 2400 2200 一 0.49 0.95 3.0
5 2400 2200 0.40 0.86 2.9
6 2400 2200 一 0.36 0.82 2.8
7 2400 2200 一 0.32 0.79 2.8
8 2400 2200 一 0.31 0.77 2.8
9 2400 2200 一 0.29 0.76 2.8
10 2400 2200 0.29 0.75 2.8
2
Duplex 		15 2400 2200 4.2 0.13 0.28 0.72 一
16 2400 2200 0.15 0.30 0.74
20 2400 2200 0.13 0.28 0.72 一
25 2400 2200 0.12 0.28 0.71 一
28 2400 2200 0.14 0.29 0.73
30 2400 2200 0.10 0.25 0.70
35 2400 2200 0.12 0.27 0.71 一
40 2400 2200 0.099 0.25 0.70
45 2400 2200 0.12 0.27 0.71
50 2400 2200 0.098 0.25 0.69
60 2400 2200 0.098 0.25 0.69 一
70 2400 2200 0.097 0.25 0.69 一
80 2400 2200 0.097 0.25 0.69 -
90 2400 2200 0.097 0.25 0.69 一
100 2400 2200 0.097 0.25 0.69 -

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

FB-CXV ※ 1 ※ 2 ※ 3 ※ 4 ※ 5 ※ 6 ※ 7
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
radialis onus 		Licentiosus
AXIBILIS onus
[Nm] [Nm] [Nm] [RPM] [ rpm] [N] [N]
115 1
Unius 		3 120 225 500 3000 6000 1300 1500
4 120 330 625 3000 6000 1500 1700
5 180 330 625 3000 6000 1600 1900
6 180 330 625 3000 6000 1700 2000
7 180 330 625 3000 6000 1800 2100
8 180 330 625 3000 6000 1900 2300
9 120 225 500 3000 6000 1900 2400
10 120 225 500 3000 6000 2000 2500
2
Duplex 		15 120 225 500 3000 6000 2300 3000
16 180 330 625 3000 6000 2300 3100
20 180 330 625 3000 6000 2500 3400
25 180 330 625 3000 6000 2700 3700
28 180 330 625 3000 6000 2800 3900
30 120 225 500 3000 6000 2900 3900
35 180 330 625 3000 6000 3000 3900
40 180 330 625 3000 6000 3200 3900
45 120 225 500 3000 6000 3300 3900
50 180 330 625 3000 6000 3400 3900
60 180 330 625 3000 6000 3600 3900
70 180 330 625 3000 6000 3800 3900
80 180 330 625 3000 6000 4000 3900
90 120 225 500 3000 6000 4200 3900
100 120 225 500 3000 6000 4300 3900

FB-CXV ※ 8 ※ 9 ※ 10
Frame
magnitudo 		Scaena Ratio Maximus
onus 		Maximus
AXIBILIS onus 		Pondus Momentumumumum
inertiae
(≤Φ14) 		Moment
inertiae
(≤Φ19) 		Moment
inertiae
(≤Φ28) 		Moment
inertiae
(≤Φ38)
[N] [N] [kg] [KGCM²] [KGCM² ] [KGCM² ] [KGCM² ]
115 1
Unius 		3 4300 3900 8 - 3.3 5.3 13
4 4300 3900 - 2.0 4.1 12
5 4300 3900 - 1.6 3.6 11
6 4300 3900 - 1.3 3.3 11
7 4300 3900 - 1.1 3.2 11
8 4300 3900 - 1.0 3.1 11
9 4300 3900 - 0.98 3.0 11
10 4300 3900 0.95 3.0 11
2
Duplex 		15 4300 3900 8.9 0.43 0.86 2.8 一
16 4300 3900 0.48 0.92 2.9
20 4300 3900 0.40 0.83 2.8 一
25 4300 3900 0.38 0.82 2.8 一
28 4300 3900 0.44 0.88 2.8 一
30 4300 3900 0.29 0.74 2.7 一
35 4300 3900 0.37 0.81 2.7
40 4300 3900 0.28 0.73 2.7 一
45 4300 3900 0.37 0.80 2.7
50 4300 3900 0.28 0.73 2.7 一
60 4300 3900 0.28 0.73 2.7 一
70 4300 3900 0.28 0.73 2.7 一
80 4300 3900 0.28 0.73 2.7 一
90 4300 3900 0.27 0.73 2.7 一
100 4300 3900 0.27 0.73 2.7 -

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

FB-CXL ※ 1 ※ 2 ※ 3 ※ 4 ※ 5 ※ 6 ※ 7
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
onus 		Licentiosus
AXIALIS
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
140 1
Unius 		3 240 470 1000 2000 4000 3200 2400
4 240 700 1250 2000 4000 3500 2700
5 360 700 1250 2000 4000 3800 3000
6 360 700 1250 2000 4000 4000 3300
7 360 700 1250 2000 4000 4200 3500
8 360 700 1250 2000 4000 4400 3700
9 240 470 1000 2000 4000 4600 3900
10 240 470 1000 2000 4000 4700 4100
2
Duplex 		15 240 470 1000 2000 4000 5400 4900
16 360 700 1250 2000 4000 5500 5000
20 360 700 1250 2000 4000 6000 5500
25 360 700 1250 2000 4000 6400 6100
28 360 700 1250 2000 4000 6700 6400
30 240 470 1000 2000 4000 6800 6600
35 360 700 1250 2000 4000 7200 7000
40 360 700 1250 2000 4000 7500 7500
45 240 470 1000 2000 4000 7800 7900
50 360 700 1250 2000 4000 8100 8200
60 360 700 1250 2000 4000 8600 8200
70 360 700 1250 2000 4000 9100 8200
80 360 700 1250 2000 4000 9100 8200
90 240 470 1000 2000 4000 9100 8200
100 240 470 1000 2000 4000 9100 8200

FB-CXL ※ 8 ※ 9 ※ 10
Frame
magnitudo 		Scaena Ratio Maximus
radialis onus 		Maximus
AXIBILIS onus 		Pondus Momentumumumum
inertiae
(≤Φ19) 		Moment
inertiae
(≤Φ28) 		Moment
inertiae
(≤Φ38) 		Moment
inertiae
(≤Φ48)
[N] [N] [kg] [KGCM² [KGCM²] [KGCM² [KGCM²]
140 1
Unius 		3 9100 8200 16 一 12 20 42
4 9100 8200 一 7.5 15 37
5 9100 8200 5.8 14 36
6 9100 8200 4.9 13 35
7 9100 8200 一 4.1 12 34
8 9100 8200 一 3.8 12 34
9 9100 8200 一 3.6 11 34
10 9100 8200 3.5 11 34
2
Duplex 		15 9100 8200 17 1.3 3.2 11
16 9100 8200 1.5 3.5 11 一
20 9100 8200 1.2 3.1 11 一
25 9100 8200 1.1 3.1 11 一
28 9100 8200 1.4 3.3 11 一
30 9100 8200 0.85 2.8 10 一
35 9100 8200 1.1 3.1 11 一
40 9100 8200 0.83 2.8 10 一
45 9100 8200 1.1 3.0 11 一
50 9100 8200 0.81 2.8 10
60 9100 8200 0.81 2.8 10 一
70 9100 8200 0.80 2.8 10 -
80 9100 8200 0.80 2.8 10 -
90 9100 8200 0.80 2.8 10 一
100 9100 8200 0.80 2.8 10 一

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

FB, CLXXX ※ 1 ※ 2 ※ 3 ※ 4 ※ 5 ※ 6 ※ 7
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
radialisis onus 		Licentiosus
AXIALIS
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
180 1
Unius 		3 500 970 2200 1500 3000 5600 4300
4 750 1400 2750 1500 3000 6200 4900
5 750 1400 2750 1500 3000 6700 5400
6 750 1400 2750 1500 3000 7100 5800
7 750 1400 2750 1500 3000 7400 6300
8 750 1400 2750 1500 3000 7800 6600
9 500 970 2200 1500 3000 8100 7000
10 500 970 2200 1500 3000 8400 7300
2
Duplex 		15 500 970 2200 1500 3000 9600 8700
16 750 1400 2750 1500 3000 9800 8900
20 750 1400 2750 1500 3000 11000 9900
25 750 1400 2750 1500 3000 11000 11000
28 750 1400 2750 1500 3000 12000 11000
30 500 970 2200 1500 3000 12000 12000
35 750 1400 2750 1500 3000 13000 13000
40 750 1400 2750 1500 3000 13000 13000
45 500 970 2200 1500 3000 14000 14000
50 750 1400 2750 1500 3000 14000 14000
60 750 1400 2750 1500 3000 15000 14000
70 750 1400 2750 1500 3000 15000 14000
80 750 1400 2750 1500 3000 15000 14000
90 500 970 2200 1500 3000 15000 14000
100 500 970 2200 1500 3000 15000 14000

FB, CLXXX ※ 8 ※ 9 ※ 10
Frame
magnitudo 		Scaena Ratio Maximus
radial onus 		Maximus
AXIBILIS onus 		Pondus Momentumumumum
inertiae
(≤Φ28) 		Moment
inertiae
(≤Φ38) 		Moment
inertiae
(≤Φ48) 		Moment
inertiae
(≤Φ65)
[N] [ N] [kg] [KGCM²] [KGCM² ] [KGCM² ] [KGCM² ]
180 1
Unius 		3 15000 14000 36 一 44 66 130
4 15000 14000 一 28 50 110
5 15000 14000 一 22 44 100
6 15000 14000 一 18 41 100
7 15000 14000 一 16 38 99
8 15000 14000 一 15 37 97
9 15000 14000 一 14 36 97
10 15000 14000 14 36 96
2
Duplex 		15 15000 14000 37 4.7 12 34
16 15000 14000 5.4 13 35
20 15000 14000 4.4 12 34 -
25 15000 14000 4.2 12 34 一
28 15000 14000 4.9 13 35
30 15000 14000 3.2 11 33 一
35 15000 14000 4.1 12 34
40 15000 14000 3.2 11 33
45 15000 14000 4.0 12 34
50 15000 14000 3.1 11 33
60 15000 14000 3.1 11 33 一
70 15000 14000 3.1 11 33 一
80 15000 14000 3.1 11 33 一
90 15000 14000 3.1 11 33 一
100 15000 14000 3.1 11 33

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

FB, CCXX ※ 1 ※ 2 ※ 3 ※ 4 ※ 5 ※ 6 ※ 7
Frame
magnitudo 		Scaena Ratio Nominal
output torque 		Maximus
output torque 		Emergency
subsisto torque 		Nominal
input celeritate 		Maximus
input celeritate 		Licentiosus
radialis onus 		Licentiosus
AXIBILIS onus
[Nm] [Nm] [Nm] [RPM] [RPM] [N] [N]
220 1
Unius 		3 1000 1600 4000 1000 2000 5800 6400
4 1500 2300 5000 1000 2000 6400 7200
5 1500 2300 5000 1000 2000 6900 7900
6 1500 2300 5000 1000 2000 7300 8600
7 1500 2300 5000 1000 2000 7700 9200
8 1500 2200 5000 1000 2000 8000 9700
9 1000 1900 4000 1000 2000 8400 10000
10 1000 1600 4000 1000 2000 8700 11000
2
Duplex 		15 1000 1600 4000 1000 2000 9900 13000
16 1500 2300 5000 1000 2000 10000 13000
20 1500 2300 5000 1000 2000 11000 14000
25 1500 2300 5000 1000 2000 12000 14000
28 1500 2300 5000 1000 2000 12000 14000
30 1000 1600 4000 1000 2000 13000 14000
35 1500 2300 5000 1000 2000 13000 14000
40 1500 2300 5000 1000 2000 14000 14000
45 1000 1300 4000 1000 2000 14000 14000
50 1500 2300 5000 1000 2000 15000 14000
60 1500 2300 5000 1000 2000 15000 14000
70 1500 2300 5000 1000 2000 15000 14000
80 1500 1800 5000 1000 2000 15000 14000
90 1000 1300 4000 1000 2000 15000 14000
100 1000 1200 4000 1000 2000 15000 14000

FB, CCXX ※ 8 ※ 9 ※ 10
Frame
magnitudo 		Scaena Ratio Maximus
onus 		Maximus
AXIBILIS onus 		Pondus Momentumumum
ex inertia
(≤Φ38) 		Moment
ex inertia
(≤Φ48) 		Moment
inertiae
(≤Φ65)
[N] [N] [kg] [KGCM2] [KGCM² ] [KGCM²]
220 1
Unius 		3 15000 14000 53 一 90 150
4 15000 14000 一 62 120
5 15000 14000 一 52 110
6 15000 14000 一 47 110
7 15000 14000 一 42 100
8 15000 14000 40 100
9 15000 14000 一 39 99
10 15000 14000 一 38 98
2
Duplex 		15 15000 14000 54 14 36
16 15000 14000 16 37
20 15000 14000 14 35
25 15000 14000 14 35 一
28 15000 14000 15 36 一
30 15000 14000 12 34 一
35 15000 14000 13 35
40 15000 14000 12 33 一
45 15000 14000 13 35
50 15000 14000 12 33 一
60 15000 14000 12 33
70 15000 14000 12 33 一
80 15000 14000 12 33 一
90 15000 14000 12 33 一
100 15000 14000 12 33 -

I. Cum nominis initus celeritate, servitium vita est 20000 horis.

II. Maxime torque cum incipiens et stetit.

III. Maxime torque cum recipit inpulsa (usque ad 1.000 temporibus).

IV. Maxime mediocris initus celeritate.

V. Maxime momentaneum initus celeritas.

VI. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output hastile centrum, at axial onus 0)

VII. Cum hoc onus et nomina initus celeritate, ministerium vita erit 20000 horis. (Applicari ad output parte berener.at radialis onus 0)

VIII. Maxime radiale onus reducer potest accipere.

IX. Maximum axiali onus reducer potest accipere.

X. De pondere variari modice ex exemplar ad modus.

+ Parametra producti accurata intellege
Producta similia
INSTITUTIONES AUCTORITATIS
CERTIFICATIONES MULTIPLES
Zhejiang Saiya intelligentes faciens Co., Ltd.
Contacta Nos
  • Upload

De nobis
Zhejiang Saiya intelligentes faciens Co., Ltd.
Zhejiang Saiya Intelligent Manufacturing Co., Ltd. Anno MMIX condita, cum XV annis accumulationis industriae, quae est societas technologiae altae specializata in productione et venditione motorum dentatorum AC Micro, motorum dentatorum AC parvorum, motorum dentatorum DC penicillorum, motorum dentatorum DC sine penicillorum BLDC, capsarum planetariarum Precisionis, et cylindri motoris...etc. Sumus. Venditor Sinensis FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox Venditores et OEM/ODM FB Series LX XC CXV CXLII CLXXX CCXX Helical planetarium Gearbox Fabricatores, Motores et capsae dentatae Saiya late in robotis industrialibus, logisticis intelligentibus, machinis energiae novae, robotis AGV, aliisque campis provectis adhibentur. Praeterea, partes criticas in ciborum confectione, involucris, textilibus, electronicis, apparatu medico, et machinis specialibus agunt, solutiones sumptibus efficaces et distinctas variis industriis offerentes. Ut commoda nostra in differentiatione et sumptibus efficacibus augeamus, societatem nostram mercatoriam, Hangzhou Saiya Transmission Equipment Co., LTD, habemus, sitae in Hangzhou, Zhejiang, prope portus Shanghai et Ningbo, ad negotia domestica et transmarina tractanda, cum venditione directa et distributione coniuncta, distributionem globalem et auxilium clientibus curantes, solutionem summae qualitatis, oeconomicam et fidam omnibus clientibus nostris praebentes.

Cultura Societatis

Authenticus Fidus
Qualitas Naturaliter Eminet.

Valores fundamentales: Seipsum evolvere et aliorum curare.

Visio:Peritus servitii in campo transmissionis intelligentis fias..

Missio nostra:Officia summae qualitatis praebere et valorem clientibus creare.

Philosophia servitii:Felicitatem et materialem et spiritualem omnium operariorum persequendo et ad progressum atque progressionem societatis humanae conferendo..

  • 2009

    Institutum

  • 80+

    Ministri

  • 5+

    Linea Productionis
Nuntium
