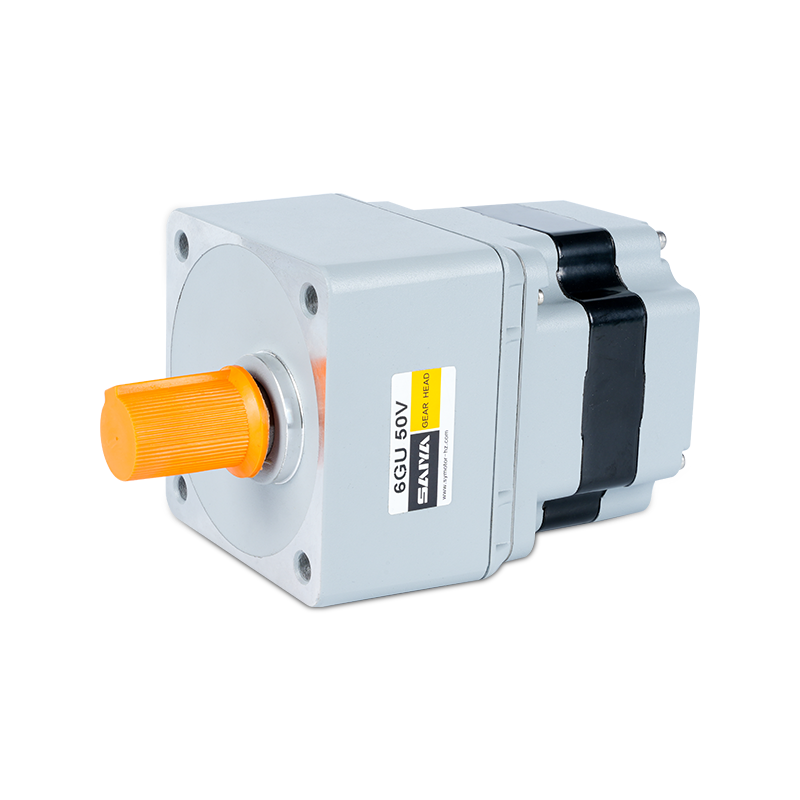

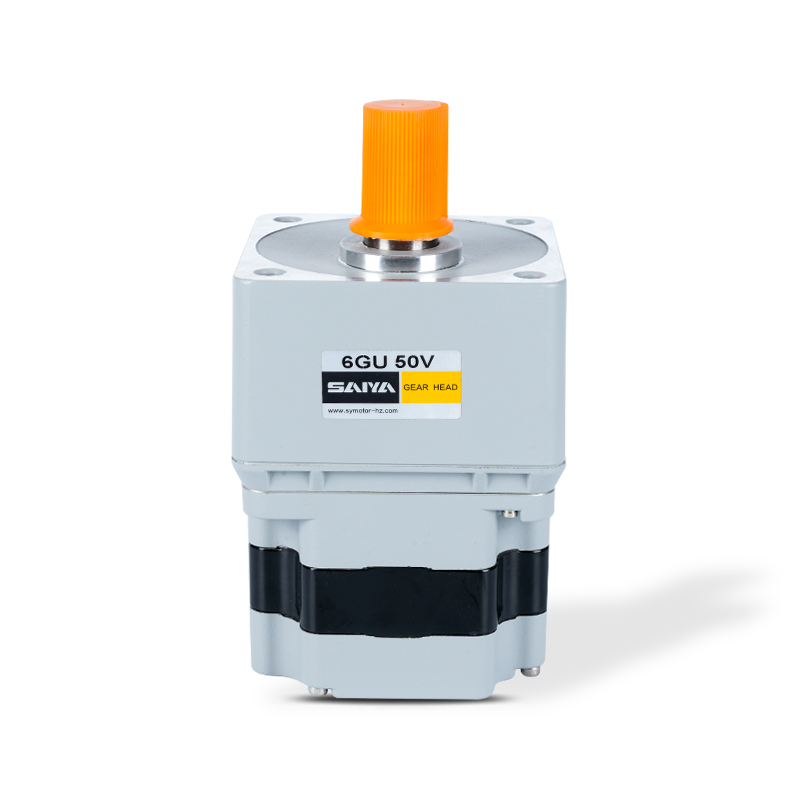

High voltage Brushless Apparatus Motors

220v-230V Brushless Apparatus motricium

Voltage Size: 220-230V, 60mmx60mm, 104mmx104mm

Rated Power: 10-400W

Rated Volo: 3000RPM

Rated Current: 0.3-7.1A

Torque: 0.036-1.5n.m

Nullus articulus prior | DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti

APPLICATIO AREA

Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

Logistics Sorting
Automated Robots
laser secans
Aditus imperium porta
Photovoltaic Power Station
Medicinae cogitationes
AGV

Descriptio Producti

230vac 230vac in Brushless calces motricium est robust et efficient solutionem disposito variis applications requiring precise et certa motus potestate. Motricium operates intra intentione range 220v ad 230v, faciens idoneam vexillum potentia commeatus. Eius pacto dimensiones, vndique a 60mm x 60mm ad 104mm x 104mm, patitur facile integration in spatio coactus environments.

Cum a rated potentia output inter 10W et 400W, hoc motricium praebet versatile perficientur dat elit. Est machinatum ad consequi rated celeritatem MMM rpm, cursus celeri et consistent operationem. Motricium scriptor current hauriendam aevum a 0,3a ad 7.1A, significans eius efficient potentia consummatio ad suum output.

Torque output hoc Brushless calces motor variatur a 0.036n.m ad 1.5n.m, quod caters ad alium torque requisitis per varios applications. Hoc range de torque facit idealis pro tasks quod opus est et mitis et magis fortius motus.

220v-230vac Brushless calces motricium complicat princeps efficientiam, pacto magnitudine, et reliable perficientur, faciens illud optimum arbitrium pro industriae automation, robotics, et alia praecisione agri. Eius facultatem ad libera consistent torque et celeritate cum maintaining humilis potentia consummatio ensures optimal functionality et industria efficientiam.

High voltage motricium parametri

Exemplar	Voltage V	Frequentia HZ	Rated potestatem W	Current Rated A	Rated celeritate Rpm	Rated torque N.m	Gradus praesidio IP
S4bld20gn	220-230	50/60	25	0.40	2500	0.10	44
S4bld20gn	100-120	50/60	25	0.80	2500	0.10	44
S4bld40-220gn	220-230	50/60	40	0.50	2500	0.15	44
S4bld40-220gn	100-120	50/60	40	1.00	2500	0.15	44
S4bld60-220gn	220-230	50/60	60	0.65	2500	0.23	44
S4bld60-220gn	100-120	50/60	60	1.30	2500	0.23	44
S4bld20gn	220-230	50/60	25	0.40	2500	0.10	44
S4bld20gn	100-120	50/60	25	0.80	2500	0.10	44
S4bld40-220gn	220-230	50/60	40	0.50	2500	0.15	44
S4bld40-220gn	100-120	50/60	40	1.00	2500	0.15	44
S4bld60-220gn	220-230	50/60	60	0.65	2500	0.23	44
S4bld60-220gn	100-120	50/60	60	1.30	2500	0.23	44
S5bld40-220gn	220-230	50/60	40	0.50	2500	0.15	44
S5bld40-220gn	100-120	50/60	40	1.00	2500	0.15	44
S5bld60-220gn	220-230	50/60	60	0.70	2500	0.23	44
S5bld60-220gn	100-120	50/60	60	1.40	2500	0.23	44
S5bld90-220gn	220-230	50/60	90	0.96	2500	0.34	44
S5bld90-220gn	100-120	50/60	90	1.90	2500	0.34	44
S5bld120-220gn	220-230	50/60	120	1.40	2500	0.46	44
S5bld120-220gn	100-120	50/60	120	2.80	2500	0.46	44
S6bld400-220gu	220-230	50/60	400	3.50	2500	1.50	44
S6bld400-220gu	100-120	50/60	400	7.10	2500	1.50	44

Motor voltage potentia et celeritas erit customized secundum petitionem sub licere re adoptable dimensionem.

Genus

High voltage motricium

Genus	Exemplar
Genus	PINGULUS	Per hastile
Duc Wire Type	S2bld10-220gn	S2bld10-220a
	S2bld15-220gn	S2bld15-20a
	S2bld20gn	S2bld20a
	S4bld20gn	S4bld20a
	S4bld40-220gn	S4bld40-220a
	S4bld60-220gn	S4bld60-220a
	S5bld40-220gu	S5bld40-220a
	S5bld60-220gu	S5bld60-220a
	S5bld60-220gu	S5bld90-220a
	S5bld120-220gu	S5bld120-220a
	S6bld400-110gu	S6bld400-110a
	S6bld400-220gu	S6bld400-220a

Parallel Shaft Gearhead (Seposte Sepors)

Gearhead Type	Gearhead Model	Ratio Gear

Longum ● low strepitu	2gn □ k 4GN □ k 5Gu □ MB 6Gu □ MB	3,3.6,5,6,7.5,9: 12.5,15,18,25,30 36,50,50,50,75,90, 100,120,150,180,200



	2gn1xk / 4gn1xk / 5Gu10xk / 6Gu10xk (Decimal Gearhead)

Intra in calces Ratio in buxum intra exemplar nominis.

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in buxum () intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Celeritas calculata per dividendo motricium scriptor synchrono celeritate per calces Ratio. Et ipsa celeritas est II% ~ XX% minus quam ostendi valorem, secundum magnitudinem onus.

Ad redigendum est celeritate ultra in calces Ratio in mensa, attach a decimal Gearhead (calces Ratio: X) Inter Gaerhead et motricium. In hoc casu, quod liceat torque 3N · m.

LX Series Allocacio torque unitas: Versus (n.m.) / latinside (KGF.cm)

Ratio Gear	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output hastile celeritate	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allocacio torque	0.19	0.23	0.32	0.38	0.48	0.58	0.81	0.97	1.16	1.44	1.73	2.07	2.52	3.00	3.00	3.00	3.00	3.00	3.00	3.00	3.00

LXXX Series Allocacio torque Unit: Versus (N.M) / Latinside (KGF.CM)

Ratio Gear	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output hastile celeritate	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allocacio torque	0.46	0.56	0.77	0.93	1.16	1.39	1.72	2.06	2.47	3.00	3.61	4.33	6.01	7.22	8.00	8.00	8.00	8.00	8.00	8.00	8.00

XC series Allocacio torque unitas: Versus (N.M) / Latinside (KGF.CM)

Ratio Gear	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output hastile celeritate	1000	830	600	500	400	330	240	200	166	120	100	83	60	50	40	33	30	25	20	16	15
Allocacio torque	0.92	1.10	1.54	1.86	2.32	2.78	3.44	4.12	4.94	6.00	7.22	8.66	12.0	14.4	18.0	19.9	20.0	20.0	20.0	20.0	20.0

CIV Series Allocacio torque Unit: Versus (N.M) / Latinside (KGF.CM)

Ratio Gear	3	3.6	5	6	7.5	9	12.5	15	18	25	30	36	50	60	75	90	100	120	150	180	200
Output hastile celeritate	833	694	500	416	333	277	200	167	139	100	83	69	50	42	33	28	25	21	17	14	12.5
Allocacio torque	3.09	3.71	5.16	6.17	7.74	9.28	11.62	3.94	16.73	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0	20.0

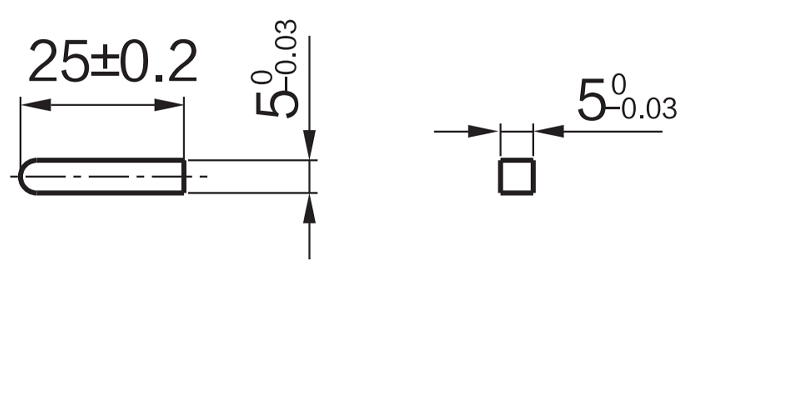

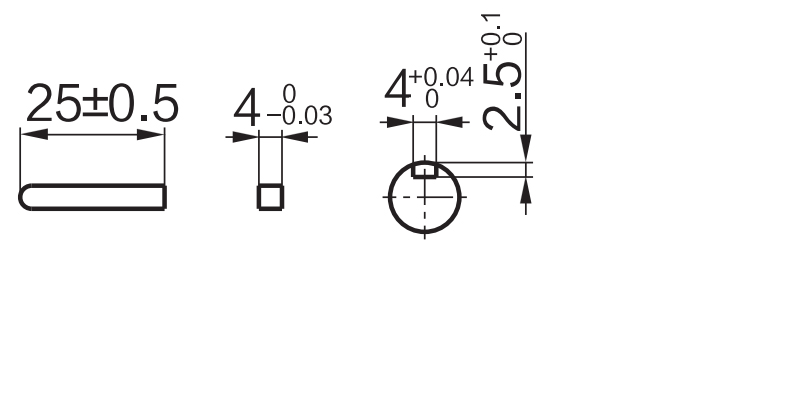

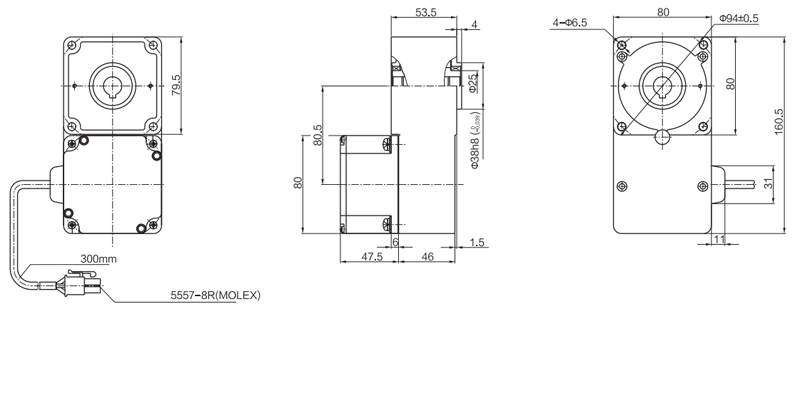

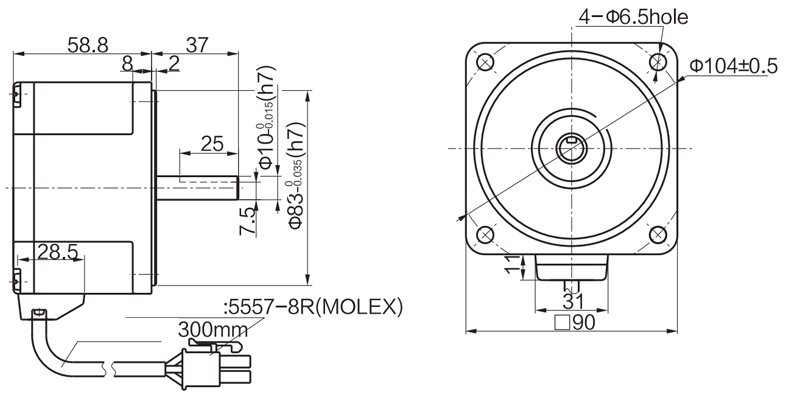

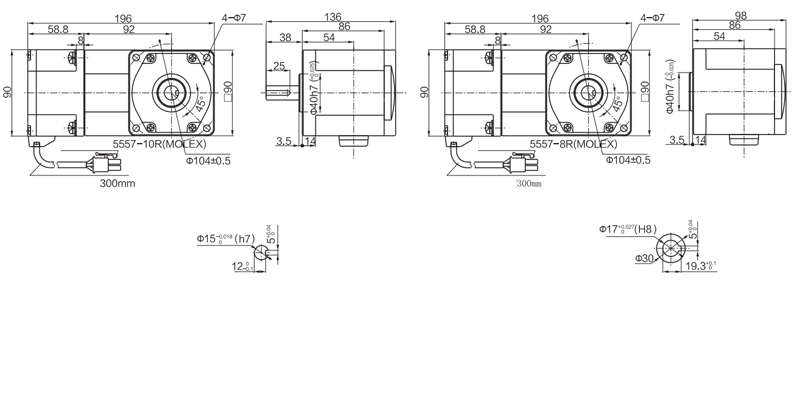

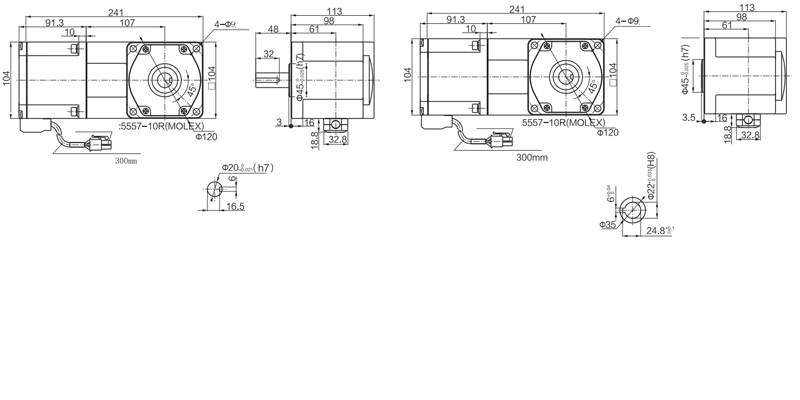

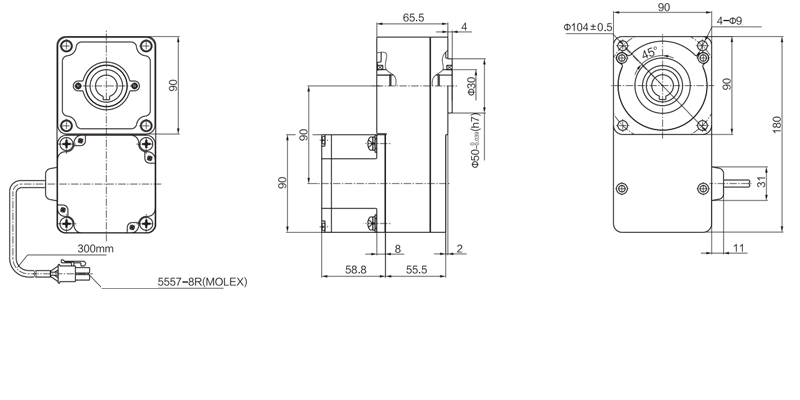

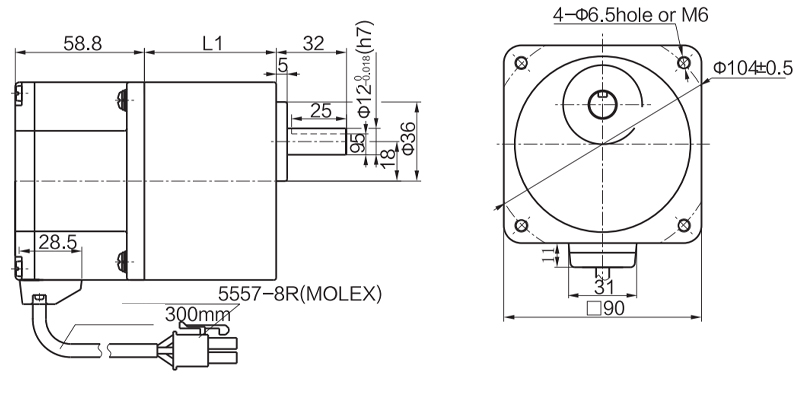

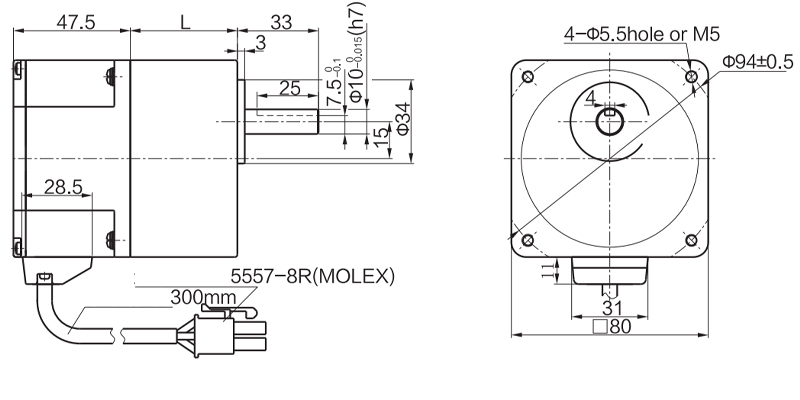

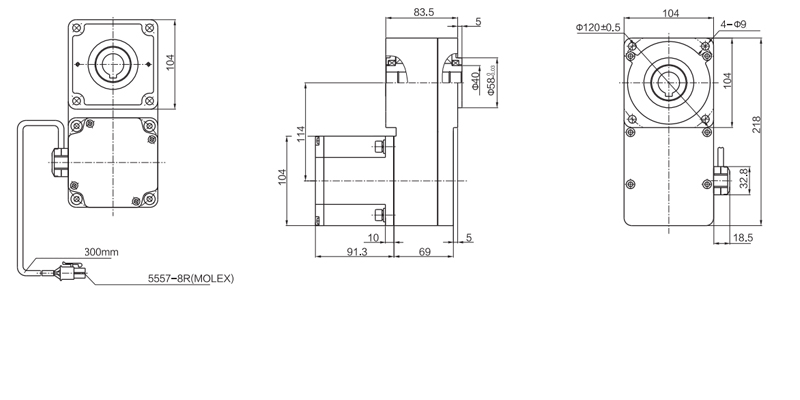

LX series dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type

Weight: Motor: 0.5kg / Gearhead: 0.48kg

Motor Model

Gearhead Model

Ratio Gear

Dimensio

Z2bld25- □ Gen.

2gn □ k

III XVIII

XXV ~ CC

Intra in calces Ratio in arca (□) intra exemplar nominis

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod de PinTo Shaft genus.

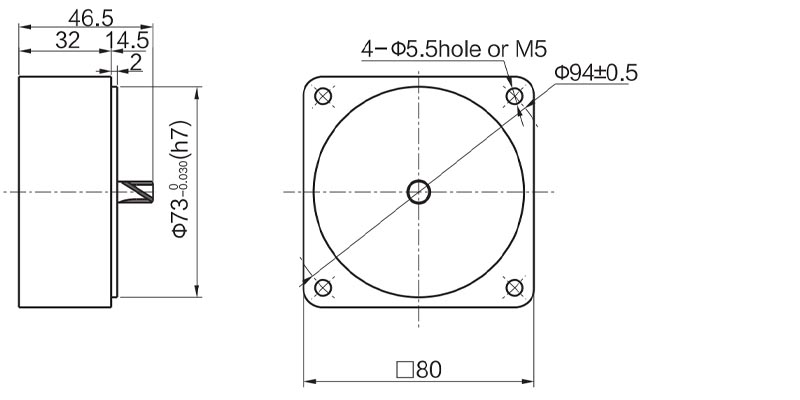

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type. 2gn1xk / Weight: 0.2kg

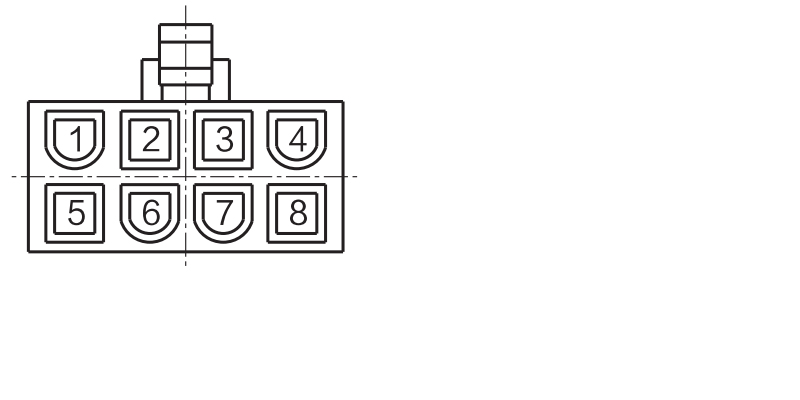

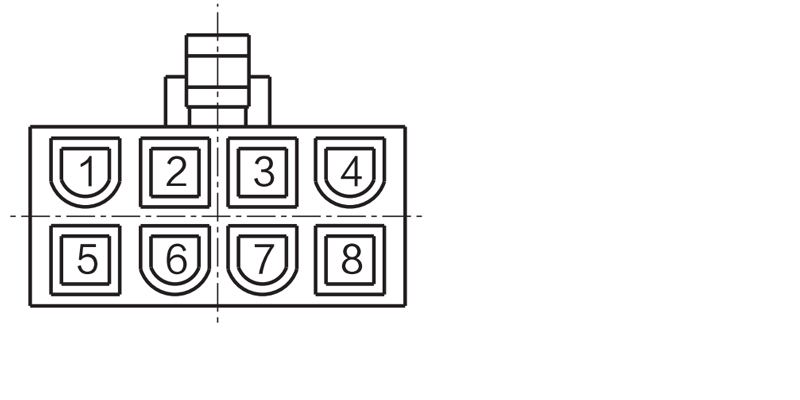

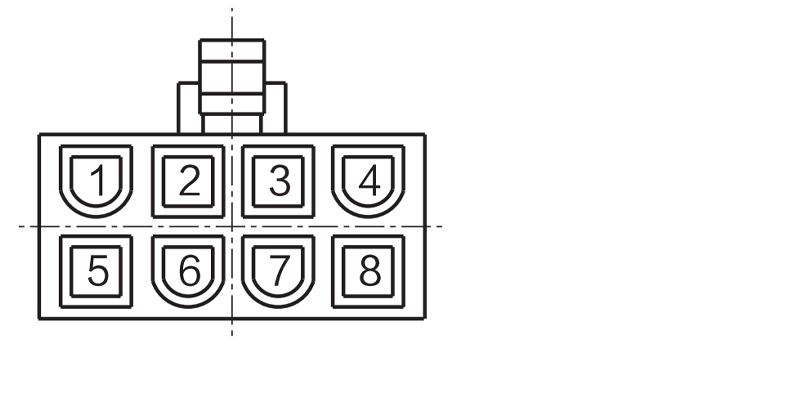

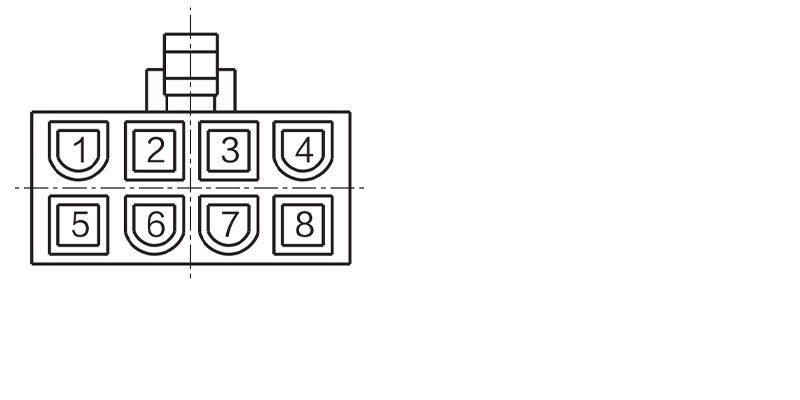

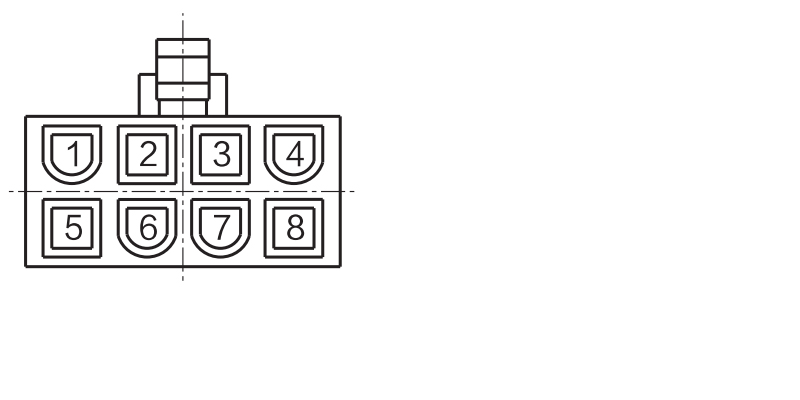

Wie plug foraminis correspondentes explicandum

Plug foraminis	1	2	3	4
SIGNUS	U	W	HZ	Hu
Plug foraminis	5	6	7	8
SIGNUS	V	Gnd	HW	VCC

LX pressura l typus reducer
