High voltage Brushless Apparatus Motors

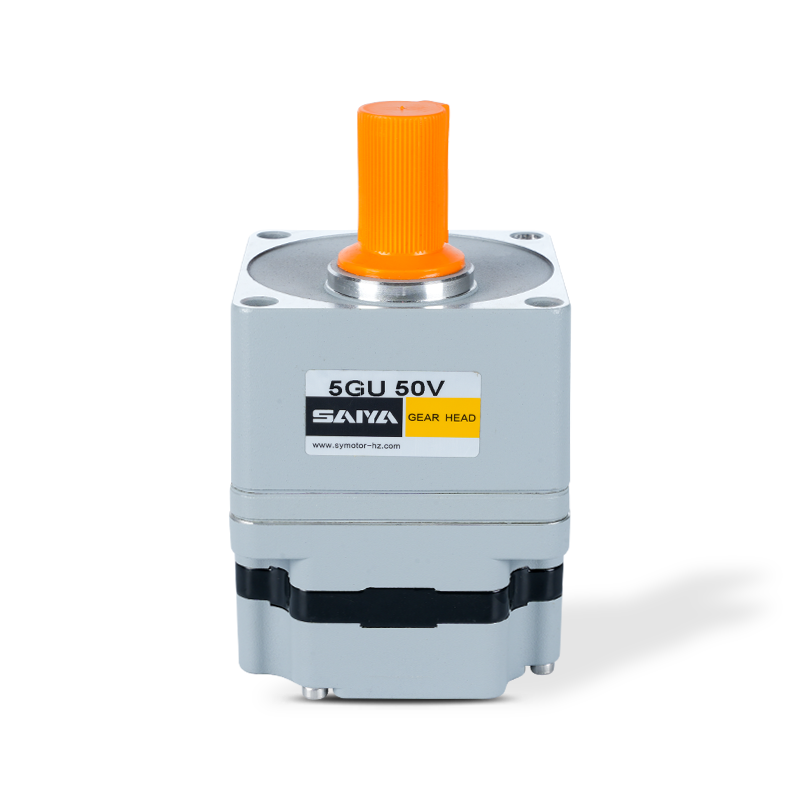

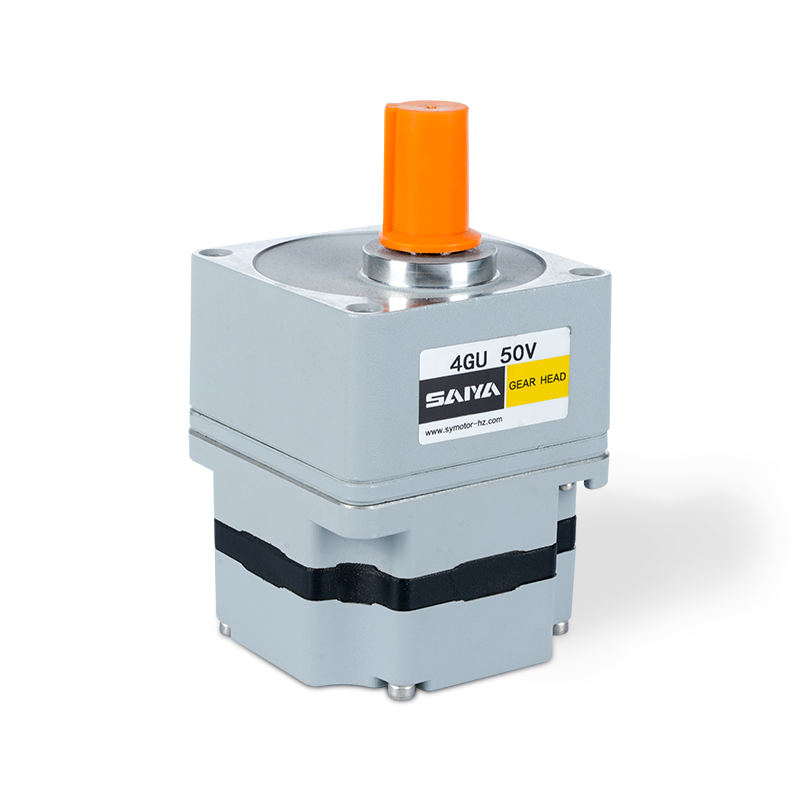

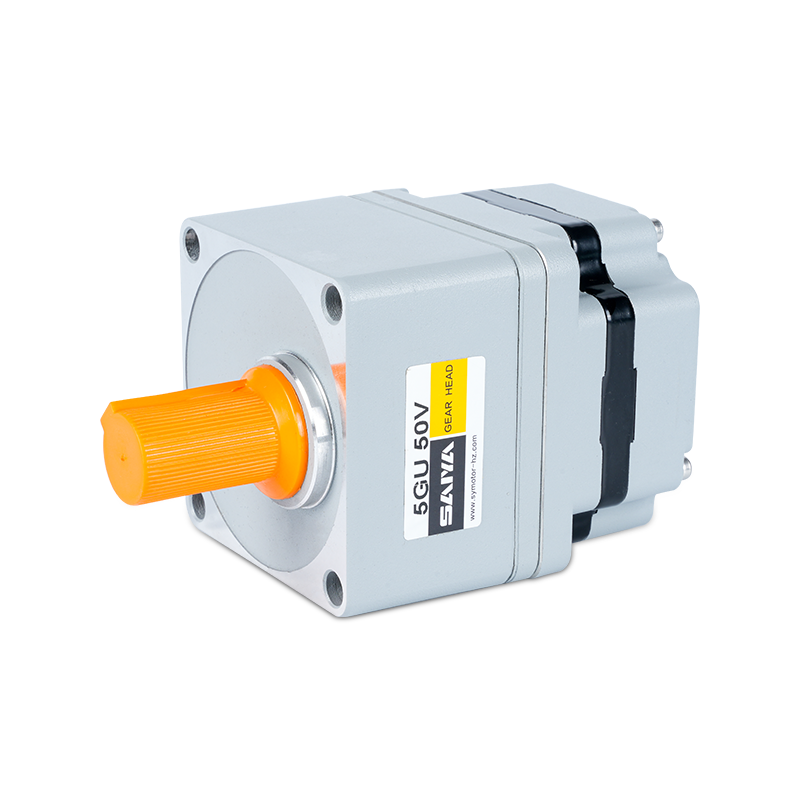

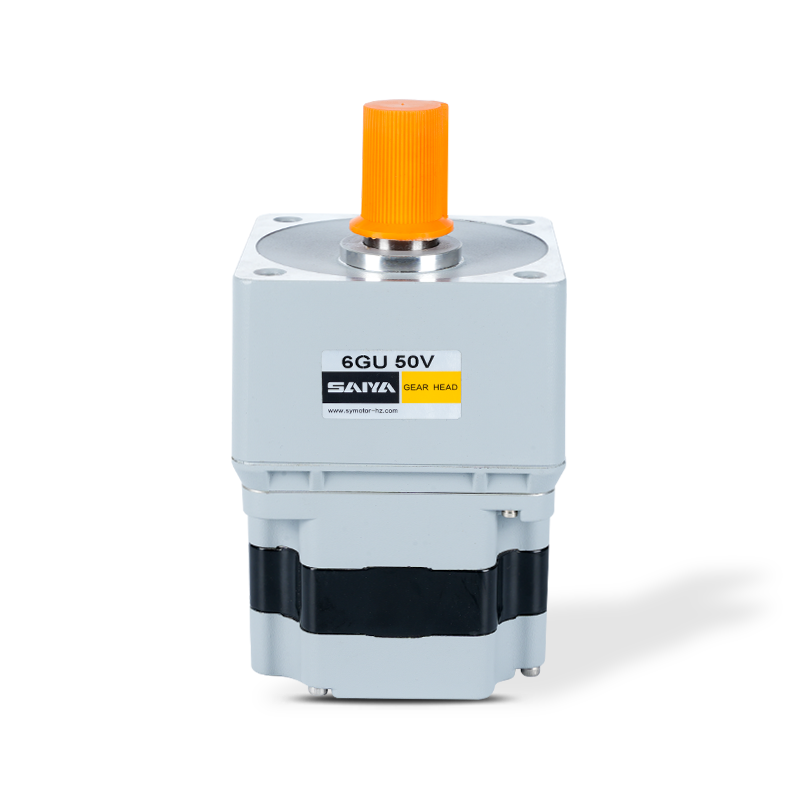

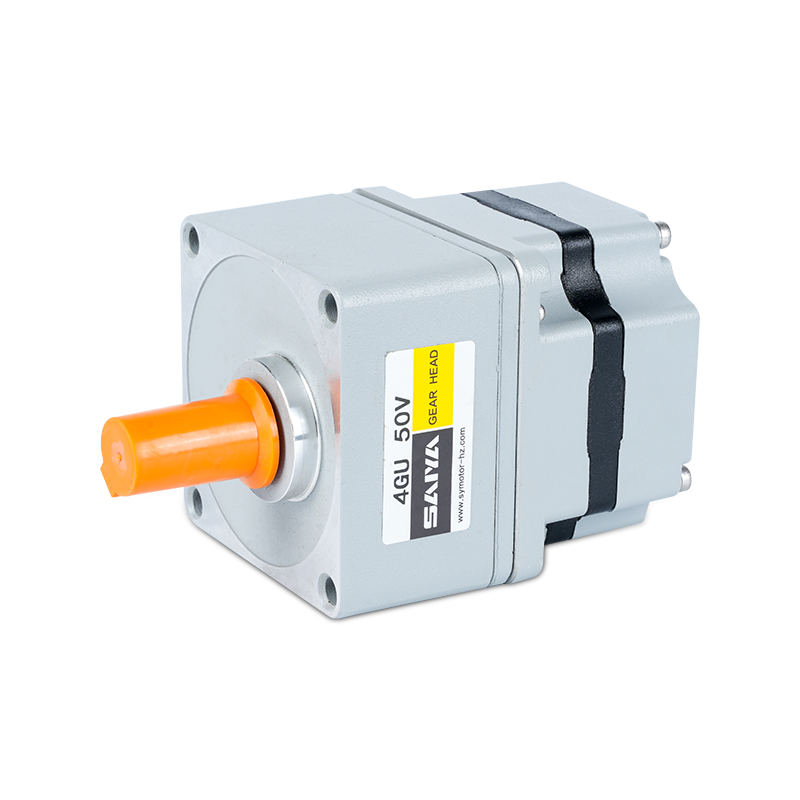

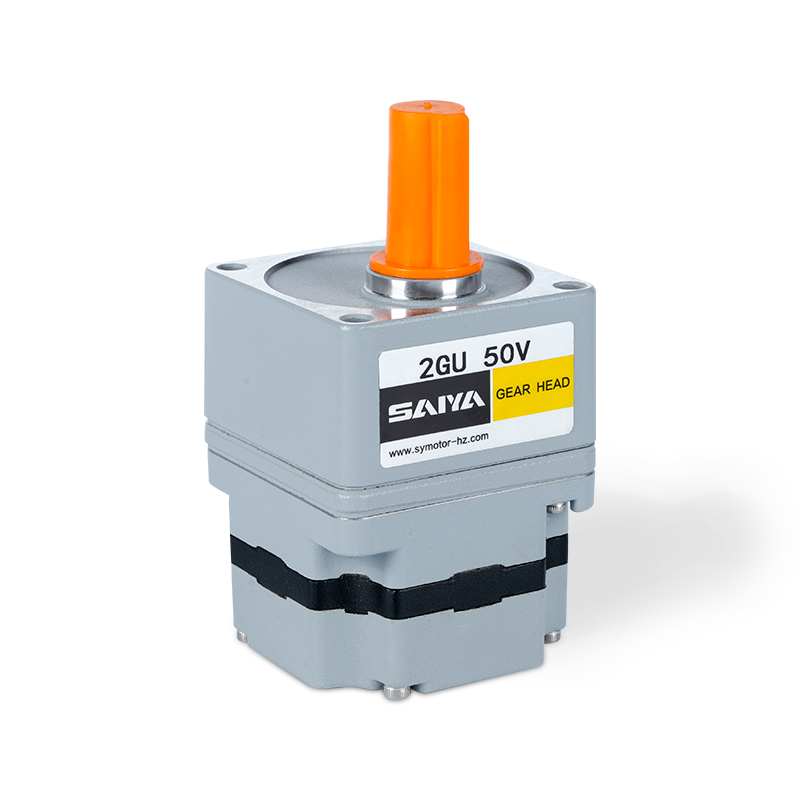

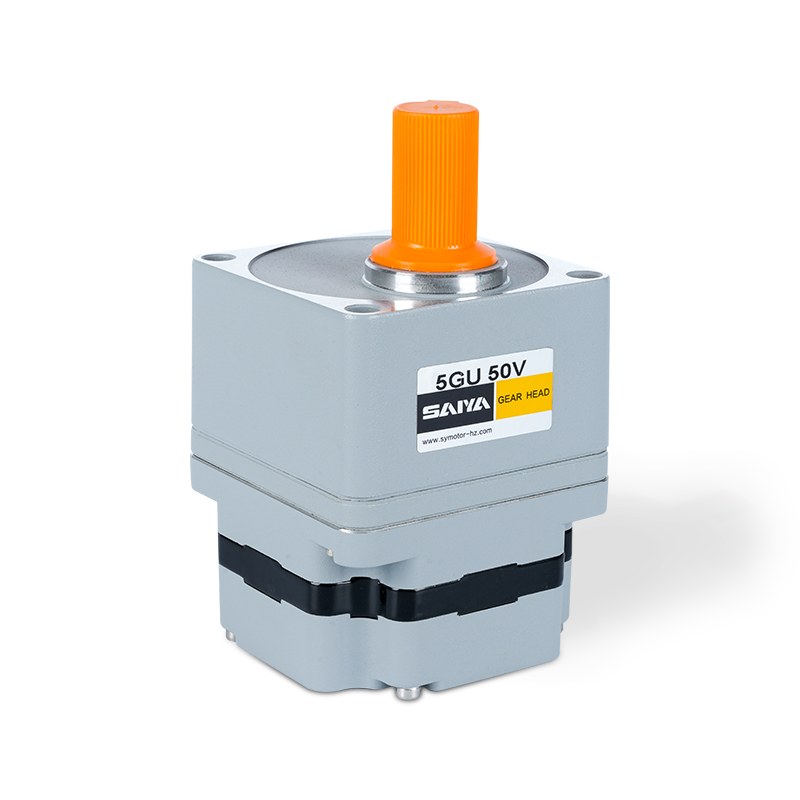

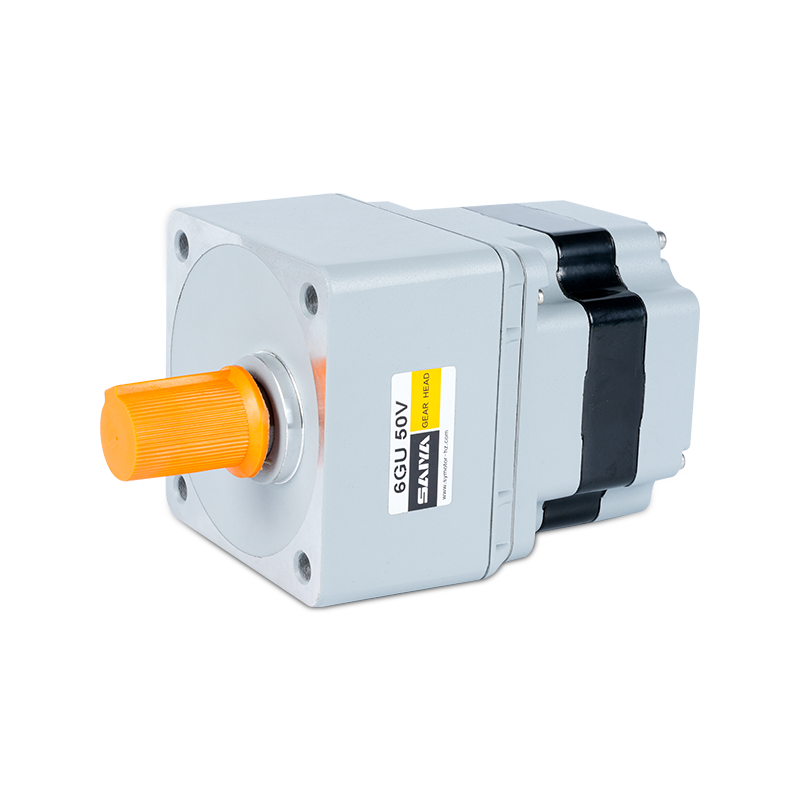

100v-120v Brushless Apparatus motricium

Voltage Size: 100-120v, 60mmx60mm-104mmx104mm

Rated Power: 10-400W

Rated Volo: 2500RPM

Rated Current: 0.3-0.6a

Torque: 0.036-.100N.M

  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
  • 100v-120v Brushless Apparatus motricium
PRAECEDENS   |   Nullus articulus proximus

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

Et 100v-120V Brushless calces motricium est robust et efficient solutio disposito variis applications requiring precise et fideles motus potestate. Motricium operates intra intentionem range 100v ad 120V, faciens idoneam vexillum potentia commeatus. Eius pacto dimensiones, vndique a 60mm x 60mm ad 104mm x 104mm, patitur facile integration in spatio coactus environments.

Cum a rated potentia output inter 10W et 400W, hoc motricium praebet versatile perficientur dat elit. Est machinatum ad consequi rated celeritatem MMD RPM, cursus celeri et consistent operationem. Motricium scriptor current hauriendum a 0,3a ad 0,6a, significans eius efficient potentia consummatio ad suum output.

Torque output de hoc Brushless calces motor variatur a 0,0100n.m ad 0.100N.M, quod caters diversis torque requisitis per varios applications. Hoc range de torque facit idealis pro tasks quod opus est et mitis et magis fortius motus.

100v-120V Brushless calces motricium combines princeps efficientiam, pacto magnitudine, et reliable perficientur, faciens illud ad arbitrium pro industriae automation, robotics et alia praecisione agros. Eius facultatem ad libera consistent torque et celeritate cum maintaining humilis potentia consummatio ensures functionality et industria efficientiam.

High voltage motricium parametri

Exemplar Voltage
V 		Frequentia
HZ 		Rated potestatem
W 		Current Rated
A 		Rated celeritate
Rpm 		Rated torque
N.m 		Gradus praesidio
IP
S2bld10-220gn 220-230 50/60 10 0.26 2500 0.036 44
100-120 50/60 10 0.50 2500 0.036 44
S2bld15-220gn 220-230 50/60 15 0.30 2500 0.056 44
100-120 50/60 15 0.60 3000 0.056 44
S2bld20gn 220-230 50/60 25 0.30 2500 0.100 44
100-120 50/60 25 0.60 2500 0.100 44

Motor voltage potentia et celeritas erit customized secundum petitionem sub licere re adoptable dimensionem.

Genus

High voltage motricium

Genus Exemplar
PINGULUS Per hastile
Duc Wire Type S2bld10-220gn S2bld10-220a
S2bld15-220gn S2bld15-20a
S2bld20gn S2bld20a

Parallel Shaft Gearhead (Seposte Sepors)

Gearhead Type Gearhead Model Ratio Gear
Longum ● low strepitu 2gn □ k 3,3.6,5,6,7.5,9:
12.5,15,18,25,30
36,50,50,50,75,90,
100,120,150,180,200
2gn1xk (Decimal Gearhead)

Intra in calces Ratio in buxum intra exemplar nominis.

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in buxum () intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Celeritas calculata per dividendo motricium scriptor synchrono celeritate per calces Ratio. Et ipsa celeritas est II% ~ XX% minus quam ostendi valorem, secundum magnitudinem onus.

Ad redigendum est celeritate ultra in calces Ratio in mensa, attach a decimal Gearhead (calces Ratio: X) Inter Gaerhead et motricium. In hoc casu, quod liceat torque 3N · m.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Ratio Gear 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Ex posuit Password Volo 1000 830 600 500 400 330 240 200 166 120 100 83 60 50 40 33 30 25 20 16 15
Allocacio torque 0.19 0.23 0.32 0.38 0.48 0.58 0.81 0.97 1.16 1.44 1.73 2.07 2.52 3.00 3.00 3.00 3.00 3.00 3.00 3.00 3.00

Dimensioes (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type

Weight: Motor: 0.5kg / Gearhead: 0.48kg

Motor Model Gearhead Model Ratio Gear Dimension
Z2bld25- □ Gen. 2gn □ k III XVIII 32
XXV ~ CC 41

Intra in calces Ratio in arca (□) intra exemplar nominis

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod de PinTo Shaft genus.

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type. 2gn1xk / Weight: 0.2kg

Wie plug foraminis correspondentes explicandum

Plug foraminis 1 2 3 4
SIGNUS U W HZ Hu
Plug foraminis 5 6 7 8
SIGNUS V Gnd HW VCC

LX pressura l typus reducer

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type

Weight: Motor: 0.9kg / Gearhead: 0.48kg

Key · Keyway (clavis est includitur cum Gearhead)

Familiae plug foraminis correspondentes signum explicandum

Plug foraminis 1 2 3 4
SIGNUS U W HZ Hu
Plug foraminis 5 6 7 8
SIGNUS V Gnd HW VCC
