  • 60W celeritas Imperium AC calces Motors
Celeritas Imperium AC calces Motors

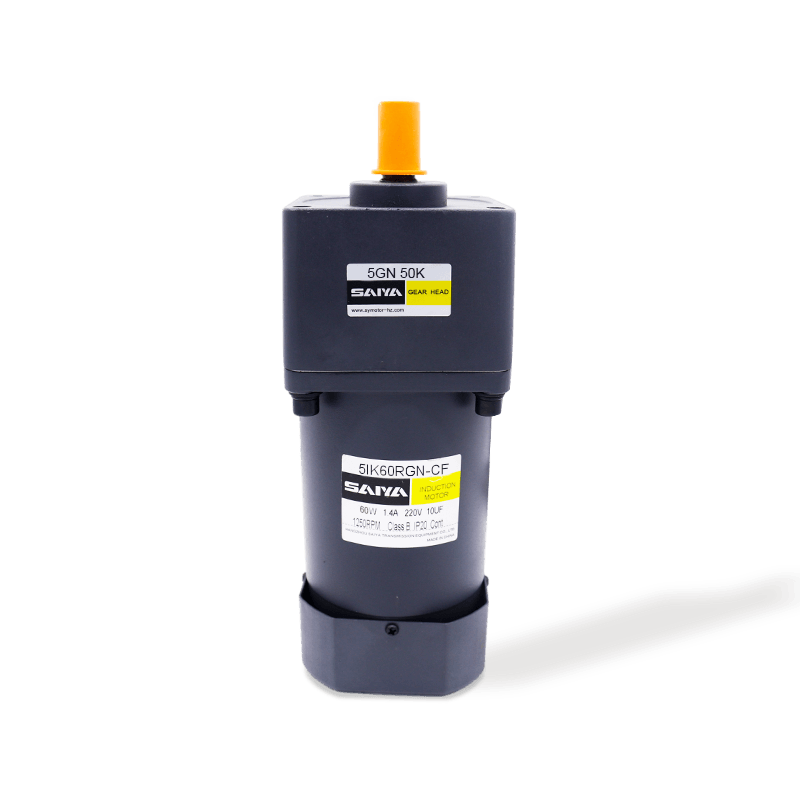

60W celeritas Imperium AC calces Motors

Voltage Size: 60W, 90mmx90mm / cum celeritate controller

Current Usage: 0.55-1.10A

Rated Torque: 140-490MN. m

Volo range: 90-1650rpm

  • 60W celeritas Imperium AC calces Motors
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

60W, 90x90mm ac calces motors cum celeritate potestate sunt pacto tamen potens, specimen pro variis parva machinatione applications, instructa celeritate moderatoris ad offerre precise ordinationem motricium celeritatem. In current usus ad haec motores ranges a 0,55 ad 1.10a, ensuring efficiens perficientur sine nimia potentia consummatio. Et providere rated torque inter CXL ad 490MN · m, faciens ea idoneam ad tasks quod eget moderari vi.

Unus de Stout features horum motoribus est ad Vocabulari celeritate range, quod palmas a XC ad MDCL RPM. Hoc versatility permittit eos esse in late ordinata de applications, a tardus, stabilis operationes ad eos requiring celeri motibus. Integrated celeritate controller est user-amica, faciens illud simplex ad adjust motor celeritate ad par specifica requisita quis project.

Induction motricium Specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5ik60gn-af
(5ik60a-a) 		5ik60gn-Aft
(5ik60a-Aft) 		60 1Ph
100 		50 1.00 320 470 1250 20.0
60 1.10 380 1550
5ik60gn-EF
(5ik40a EF) 		5ik60GN, EFT
(5ik60a-EFT) 		60 1Ph
110 		60 0.80 300 380 1550 12.0
1Ph
120 		0.85
5ik60gn-CF
(5ik60a-cf) 		5ik60gn-CFT
(5ik60a-cft) 		60 1Ph
220 		50 0.50 340 470 1250 4.0
1Ph
230 		0.55
5ik60GN, HF
(5ik60a-HF) 		5ik60GN, HFT
(5ik60a-HFT) 		60 1Ph
220 		60 0.50 340 380 1550
1Ph
230 		0.55
5ik60gn-SF
(5ik60a-sf) 		5ik60GG-Sft
(5ik60a-sft) 		60 3ph
220 		50 0.45 1000 470 1250
60 0.40 800 380 1550

Reuersibe motricium specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5rk60gn-af
(5rk60a-a) 		5rk60gn-AFT
(5rk60a-Aft) 		60 1Ph
100 		50 1.26 470 470 1250 25.0
60 1.70 380 1550
5rk60gn-EF
(5rk60a-EF) 		5rk60gn-EFT
(5rk60a-EFT) 		60 1Ph
110 		60 1.05 330 380 1550 15.0
1Ph
120 		380
5rk60gn-CF
(5rk60a-cf) 		5rk60gn-CFT
(5rk60a-cft) 		60 1Ph
220 		50 0.55 420 470 1250 4.5
1Ph
230 		0.60 460
5rk60gn-HF
(5rk60a-HF) 		5rk60gn-HFT
(5rk60a-HFT) 		60 1Ph
220 		60 0.55 420 380 1550 4.5
1Ph
230 		0.60 460

Reversible motricium Specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Celeritate
Imperium
Range
R / min 		Allocacio torque Satus
Torque
mn.m 		Current
A 		Capacitor
μf
PINGULUS Per hastile 1200r / min
mn.m 		90r / min
mn.m
5ik60rgn-af 5ik60ra, af 60 1Ph
100 		50 XC ~ MCCCL 460 140 265 1.00 20.0
60 XC ~ MDCL 490 160 1.10
5ik60rgn-EF 5ik60ra-EF 60 1Ph
110 		60 XC ~ MDCL 490 160 265 0.80 12.0
1Ph
120 		0.85
5ik60rgn-CF 5ik60ba CF 60 1Ph
220 		50 XC ~ MCCCL 490 140 265 0.50 4.0
1Ph
230 		0.55
5ik60rgn-HF 5ik60ra-HF 60 1Ph
220 		60 XC ~ MDCL 490 160 265 0.50 4.0
1Ph
230 		0.55

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in arca (□) intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus
Motricium / Gearhead 		Ratio Gear 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Volo R / min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
60hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
5ik60gn-af □
5ik60gn-EF □
5ik60gn-cf □
5ik60gn-HF □
5ik60gn-sf □ 		5gn □ k 50Hz 1.1 1.4 1.9 2.3 2.9 3.4 4.8 5.7 6.8 8.6 10 10 10 10 10 10 10 10 10 10 10
11.2 14.2 19.3 23.4 29.6 34.7 48.9 58.1 69.3 87.7 100 100 100 100 100 100 100 100 100 100 100
60Hz 0.92 1.1 1.5 1.8 2.3 2.8 3.8 4.6 5.5 6.9 8.3 10 10 10 10 10 10 10 10 10 10
9.38 11.2 15.3 18.3 23.4 28.5 38.7 46.9 56.1 70.1 84.7 100 100 100 100 100 100 100 100 100 100

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type (inductione / Reversible motricium)

Weight: Motor: 2.7kg / Gearhead: 1.35kg

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod ex Pionum Shaft genus.

Duc Wiring Type (fregit Motors)

Weight: Motor: 3.5kg / Gearhead: 1.35kg

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type.

Pondus 0.6kg

Duc Wiring Type (celeritate Imperium Motors)

Weight: Motor: 1.1kg / Gearhead: 0,5kg

Gearhead Model Ratio Gear L1
2gn □ k III XVIII 42
XXV ~ CC 60

Intra in calces Ratio in arca (□) intra exemplar nominis
