  • 120W celeritas Imperium AC calces Motors
Celeritas Imperium AC calces Motors

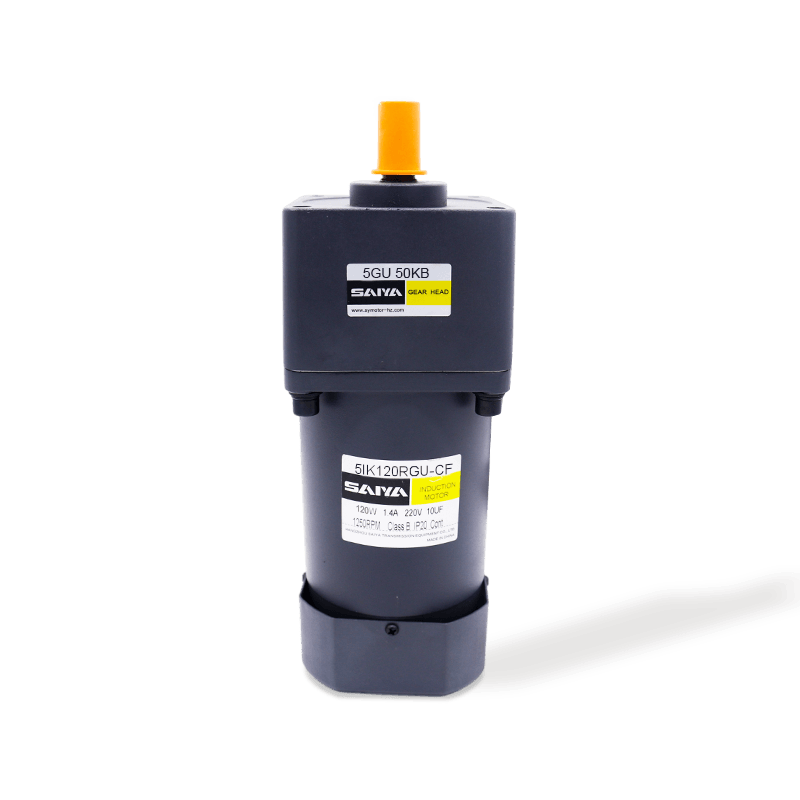

120W celeritas Imperium AC calces Motors

Voltage Size: 120w, 90mmx90mm / cum celeritate controller

Current Usage: 0.95-2.5A

Rated torque: 330-750Mn. m

Volo range: 90-1650rpm

  • 120W celeritas Imperium AC calces Motors
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

120W, 90x90mm ac calces motors cum celeritate imperium sunt pacto tamen potens, specimen variis parva machinatione applications et instructi celeritas controller ad offerre precise ordinationem motricium celeritatem. In current usus ad haec motores ab 0,95 ad 2.50a, ensuring efficiens perficientur sine nimia potentia consummatio. Providere rated torque inter CCCXXX ad 750mn · m, faciens eos idoneam ad officia quae requirere moderari vi.

Unus de Stout features horum motoribus est ad Vocabulari celeritate range, quod palmas a XC ad MDCL RPM. Hoc versatility permittit eos esse in late ordinata de applications, a tardus, stabilis operationes ad eos requiring celeri motibus. Integrated celeritate controller est user-amica, faciens illud simplex ad adjust motor celeritate ad par specifica requisita quis project.

Induction motricium Specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5ik120Gu, af
(5ik120a-a) 		5ik1220GU, AFT
(5ik120a-Aft) 		120 1Ph
100 		50 2.1 600 930 1250 30.0
60 2.5 750 1550
5ik1220Gu-EF
(5ik120a-EF) 		5ik1220GU-EFT
(5ik120a-EFT) 		120 1Ph
110 		60 1.65 600 750 1550 25.0
1Ph
120 		1.80
5ik120Gu CF
(5ik120a-cf) 		5ik120Gu-CFT
(5ik120a-cft) 		120 1Ph
220 		50 1.0 650 930 1250 7.0
1Ph
230 		0.95
5ik1220Gu, HF
(5ik120a-HF) 		5ik1220Gu, HFT
(5ik120a-HFT) 		120 1Ph
220 		60 1.0 600 750 1550
1Ph
230 		0.95
5ik120Gu-SF
(5ik120a-sf) 		5ik120Gu-Sft
(5ik1220a-sft) 		120 3ph
220 		50 0.70 1850 930 1250
60 0.60 1600 750 1550

Reuersibe motricium specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5rk120gu, af
(5rk120a-a) 		5rk120gu, AFT
(5rk1220a, Aft) 		120 1Ph
100 		50 2.25 700 930 1250 35.0
60 2.85 750 1550

5rk120gu-EF
(5rk120a-EF) 		5rk120gu, EFT
(5rk1220a-eft 		120 1Ph
110 		60 1.90 650 750 1550 30.0
1Ph
120 		720
5rk120gu CF
(5rk1220a-cf) 		5rk120gu, CFT
(5rk120a-cft) 		120 1Ph
220 		50 1.15 720 930 1250 8.0
1Ph
230
5rk120gu, HF
(5rk1220a-HF) 		5rk120Gu, HFT
(5rk120a-HFT) 		120 1Ph
220 		60 1.20 720 750 1550 8.0
1Ph
230

Reversible motricium Specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Celeritate
Imperium
Range
R / min 		Allocacio torque Satus
Torque
mn.m 		Current
A 		Capacitor
μf
PINGULUS Per hastile 1200r / min
mn.m 		90r / min
mn.m
5ik120rgu, af 5ik120ra, af 120 1Ph
100 		50 XC ~ MCCCL 750 330 530 2.10 30
60 XC ~ MDCL 2.50
5ik120rgu-EF 5ik120ra EF 120 1Ph
110 		60 XC ~ MDCL 750 360 530 1.65 25
1Ph
120 		1.80
5ik120RGu CF 5ik120ra CF 120 1Ph
220 		50 XC ~ MCCCL 750 330 530 1.00 7.0
1Ph
230 		0.95
5ik120rgu, HF 5ik120ra, ille 120 1Ph
220 		60 XC ~ MDCL 750 360 530 1.00 7.0
1Ph
230 		0.95

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in arca (□) intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus
Motricium / Gearhead 		Ratio Gear 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Volo R / min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
60hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
5ik120gu, af □
5ik120gu-EF □
5IK120GU CF □
5ik1220Gu-HF □
5ik1220Gu-SF □ 		5Gu □ MB
5gu □ K 		50Hz 2.3 2.7 3.8 4.5 5.6 6.8 8.5 10.2 12.2 15.3 18.4 20 20 20 20 20 20 20 20 20 20
23.4 27.5 38.7 45.9 57.1 69.3 86.7 104 124 156 187 200 200 200 200 200 200 200 200 200 200
60Hz 1.8 2.2 3.0 3.6 4.6 5.5 6.8 8.2 9.8 12.4 14.9 17.8 20 20 20 18.8 20 20 20 20 20
18.3 22.4 30.6 36.7 46.9 56.1 69.5 83.6 100 126 152 181 200 200 200 192 200 200 200 200 200

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type (inductione / Reversible motricium)

Weight: Motor: 3.4kg / Gearhead: 1.5kg

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod ex Pionum Shaft genus.

Duc Wiring Type (fregit Motors)

Weight: Motor: 4.3kg / Gearhead: 1.5kg

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type.

Pondus 0.6kg

Duc Wiring Type (celeritate Imperium Motors)

Weight: Motor: 3.5kg / Gearhead: 1.5kg

Gearhead Model Ratio Gear L1
5gn □ k CC ~ CC 65.5

Intra in calces Ratio in arca (□) intra exemplar nominis

Duc Wiring Type (celeritate Imperium Motors)

Pondus: Motor: 3.55KG / Gearhead: 1.5kg

Gearhead Model Ratio Gear L1
5gn □ k CC ~ CC 65.5

Intra in calces Ratio in arca (□) intra exemplar nominis
