Parvus ac calces motricium

550w series

Motricium Power: 550w horizontalis vel vertical install

Phase: Single Phase / tribus Phase

Ratio calces: 3-1800k

Motricium Electio: 240v-phase III Motor 220v /-415v 3880v, 50Hz / 60Hz; I Phase motricium, 220v, 50Hz / 60hz; I Phase motor, 110v, 50Hz / 60Hz

Output Shaft Diameter: φ22mm φ28mm φ32mm Φ40mm

  • 550w series
  • 550w series
  • 550w series
  • 550w series
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

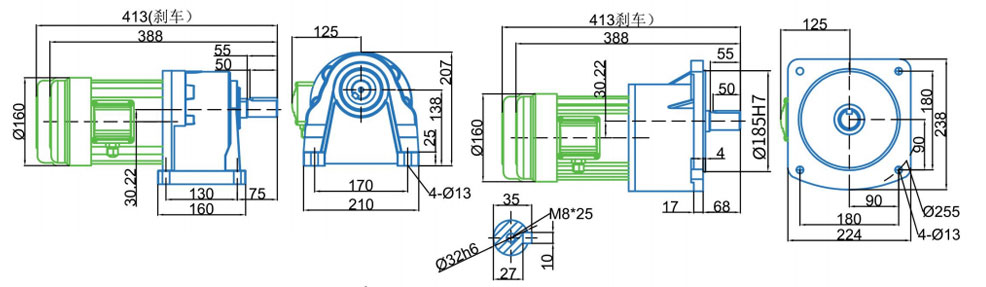

Ch22 / cv22-550w- (Latin Box I: III ~ X Ratio) (reducitur Box I: XV ~ XC Ratio) Diagram

Ch32 / CV32-550W (I: CCX vel altius Ratio) Dimension Diagram

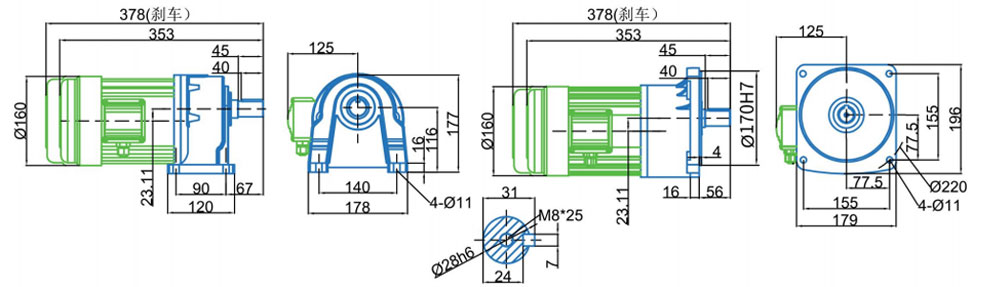

Ch28 / CV28-550W - (Latin Box I: XV ~ XC Ratio) (reducitur Box I: C ~ CC Ratio) Dimensional Drawing

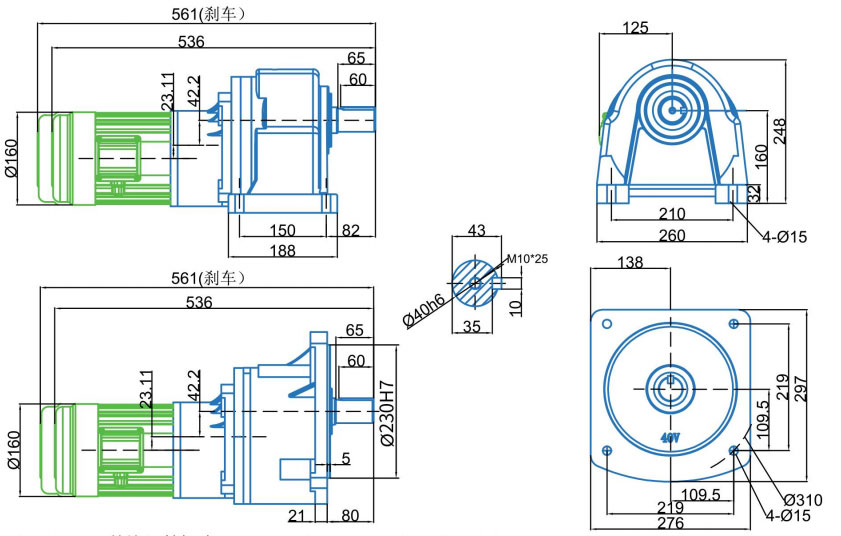

Ch40 / CV40-550W (I, CCX vel altius Ratio) Diagram Location

Ch32 / CV32-550W - (Latin Box I: C ~ Ratio CC) Dimensional Drawing

Electrical Machinery Parameter

Electrical Machinery Parameter

Power (KW)

Genus

Voltage (V)

Frequency (HZ)

Rated current (a)

Rated Rotation celeritate (RMP)

Capacitors (μf)

SURULATIO Classification

Tutela ratio

0.55KW

III / 4hp

TRIBUS

220v / 380v

50Hz

2.6a / 1.5a

1420RMP

/

F

IP54

550W- (I: 3-1800 Digital Ratio) Torque TRANS

Gera Ratio

3

5

10

15

20

25

30

40

50

60

70

80

90

100

120

140

160

180

200

300

1200

1800

Output r.p.m.

50Hz

500

300

150

100

75

60

50

37

30

25

21.4

18.8

16.7

15

12.5

10.7

9.4

8.4

7.5

5

1.25

0.83

60hz

600

360

180

120

90

72

60

45

36

30

25.7

22.5

20

18

15

12.9

11.3

10

9

6

1.5

1

Output torque kg / m

50Hz

1

1.7

3.5

5.2

6.9

8.6

10.4

13.4

16.8

20.1

23.9

27

30

33.1

39.8

45.9

52

58.8

63

101.4

101.4

101.4

60hz

0.9

1.5

2.9

4.4

5.8

14.4

8.8

11.2

14

16.8

19.9

22.5

25.1

27.6

33.2

38.3

43.5

49

52.5

81.9

81.9

81.9

Celeritas in mensa est ratione secundum rated celeritatem motricium ad 50Hz / 60hz, 1420r.min / 1732r.min

In ipsa celeritate et variantur leviter cum magnitudine onus, cum variation range de ± V%.
