Appersible n passionum motors

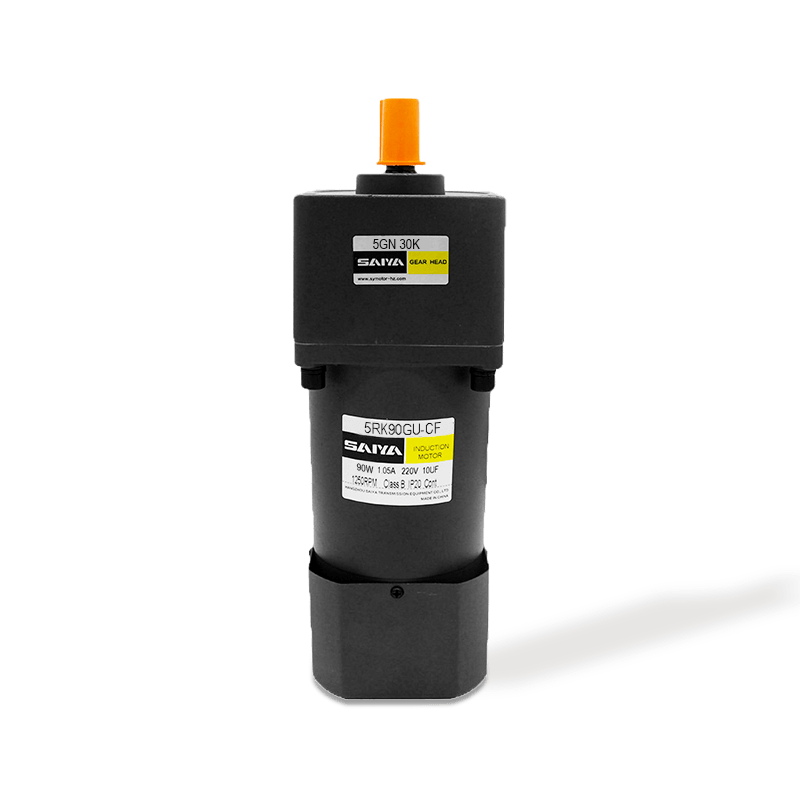

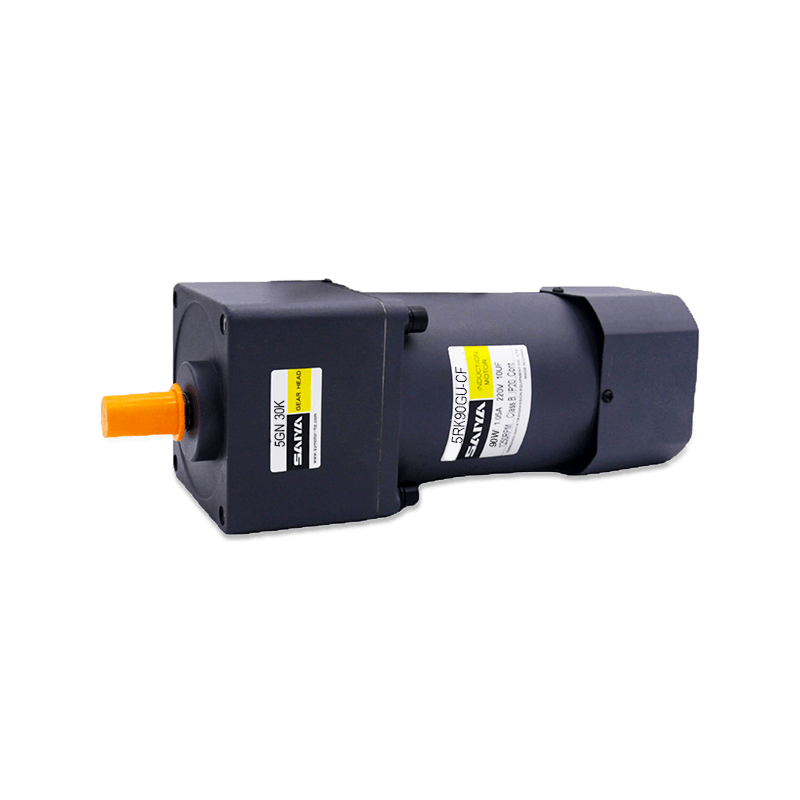

90W Reversible n passionum Motors

Voltage Size: 90W, 90mmx90mm / cum fregit

Operating Voltage: 1Ph 110-1PH 230V

Capacitor Capacitor Capacity: 6-30uf

Celeritas fundatur super Asynchronous celeritate electrica motricium (50Hz: 1200r / min, 60hz: 1450r / min)

  • 90W Reversible n passionum Motors
  • 90W Reversible n passionum Motors
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

90W Appersible n passionum Motors sunt pacto cum a frame magnitudinem 90mm x 90mm, haec motoribus sunt disposito ad aptare in stricta spatia sine comproming in perficientur. Et veniunt instructa cum braking system curare velox et accurate intercedant, enhancing salus et imperium in variis applications.

Et Motors sunt versatile in terms of potentia copia, operating in unum-phase voltage of aut 110v aut 230v, requirere a capacitor cum facultatem vndique a 6to XXX μf ut satus et effective.

Motores operantur ad Asynchronous velocitates, quae variantur fretus in frequentiam electrica copia: 1200rmp ad 50Hz et MCDL ad 60Hz. Haec differentia in celeritate concedit ad Motors utendum in amplis applications, providente consistent perficientur trans diversis ambitibus et requisitis.

Induction motricium Specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5ik90gu, af
(5ik90a-a)
5ik90gu-AFT
(5ik90a-Aft) 		90 1Ph
100 		50 1.55 450 700 1250 25.0
60 1.85 570 1550
EF 5ik90Gu
(5ik90a-EF) 		5ik90gu, EFT
(5ik90a-EFT) 		90 1Ph
110 		60 1.40 500 570 1550 20.0
1Ph
120 		1.45
5ik90gu, CF
(5ik90a-cf) 		5ik90gu, CFT
(5ik90a-cft) 		90 1Ph
220 		50 0.72 450 700 1250 5.0
1Ph
230 		0.70
5ik90gu, HF
(5ik90a-HF) 		5ik90gu, HFT
(5ik90a-HFT) 		90 1Ph
220 		60 0.71 450 570 1550
1Ph
230 		0.75
5ik90gu-SF
(5ik90a-SF) 		5ik90gu, Sft
(5ik90a-SFT) 		90 3ph
220 		50 0.60 1350 700 1250
60 0.55 1100 570 1550

Reuersibe motricium specs

Model · Type
Superioris PINGULUS
Infra: Roft 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
Plumbum wireetetype
Dimensions① 		Type Type Terminal
Dimensions②②
5rk90gu, af
(5rk90a-a) 		5rk90gu, AFT
(5rk90a-Aft) 		90 1Ph
100 		50 1.78 600 700 1250 30.0
60 2.35 570 1550
5rk90gu-EF
(5rk90a-EF) 		5rk90gu, EFT
(5rk90a-eft) 		90 1Ph
110 		60 1.72 550 570 1550 25.0
1Ph
120 		600
5rk90gu, CF
(5rk90a-cf) 		5rk90gu, CFT
(5rk90a-cft) 		90 1Ph
220 		50 0.82 560 700 1250 6.0
1Ph
230 		0.81
5rk90gu, ille
(5rk90a-HF) 		5rk90gu, HFT
(5rk90a-HFT) 		90 1Ph
220 		60 0.81 560 560 1550 6.0
1Ph
230 		0.80

Reversible motricium Specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Celeritate
Imperium
Range
R / min 		Allocacio torque Satus
Torque
mn.m 		Current
A 		Capacitor
μf
PINGULUS Per hastile
1200r / min
mn.m
90r / min
mn.m
5ik90rgu, af 5ik90ra-af 90 1Ph
100 		50 XC ~ MCCCL 710 230 405 1.55 25.0
60 XC ~ MDCL 260 1.85
5ik90rgu-EF 5ik90ra-EF 90 1Ph
110 		60 XC ~ MDCL 710 260 410 1.40 20.0
1Ph
120 		1.45
5ik90rgu CF 5ik90ra CF 90 1Ph
220 		50 XC ~ MCCCL 710 230 410 0.72 5.0
1Ph
230 		0.70
5ik90rgu, HF 5ik90ra-HF 90 1Ph
220 		60 XC ~ MDCL 710 260 410 0.71 5.0
1Ph
230 		0.75

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in arca (□) intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus
Motricium / Gearhead 		Ratio Gear 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Volo R / min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
60hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
5ik90gu, af □
5ik90gu EF □
5ik90gu, cf □
5ik90gu-HF □
5ik90gu-sf □ 		5Gu □ MB
5gu □ K 		50Hz 1.1 2.0 2.8 3.4 4.3 5.1 6.4 7.7 9.2 11.6 13.6 16.6 20 20 20 20 20 20 20 20 20
17.3 20.4 28.6 34.7 43.9 52.0 65.3 78.6 93.3 118 142 169 200 200 200 200 200 200 200 200 200
60Hz 1.4 1.7 2.3 2.8 3.5 4.2 5.2 6.2 7.5 9.4 11.3 13.5 18.8 20 20 18.8 20 20 20 20 20
14.3 17.3 23.5 28.6 35.7 42.9 53.1 63.3 76.5 95.9 115 138 19.2 200 200 192 200 200 200 200 200

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type (inductione / Reversible motricium)

Weight: Motor: 3.2kg / Gearhead: 1.5kg

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod ex Pionum Shaft genus.

Duc Wiring Type (fregit Motors)

Weight: Motor: 4.3kg / Gearhead: 1.5kg

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type.

Pondus 0.65KG

Duc Wiring Type (celeritate Imperium Motors)

Weight: Motor: 3.3kg / Gearhead: 1.5kg

Gearhead Model Ratio Gear L1
5gn □ k CC ~ CC 65.5

Intra in calces Ratio in arca (□) intra exemplar nominis

Duc Wiring Type (celeritate Imperium Motors)

Weight: Motor: 3.35kg / Gearhead: 1.5kg

Gearhead Model Ratio Gear L1
5gn □ k CC ~ CC 65.5

Intra in calces Ratio in arca (□) intra exemplar nominis
