Induction Arcana Coelestia Motors

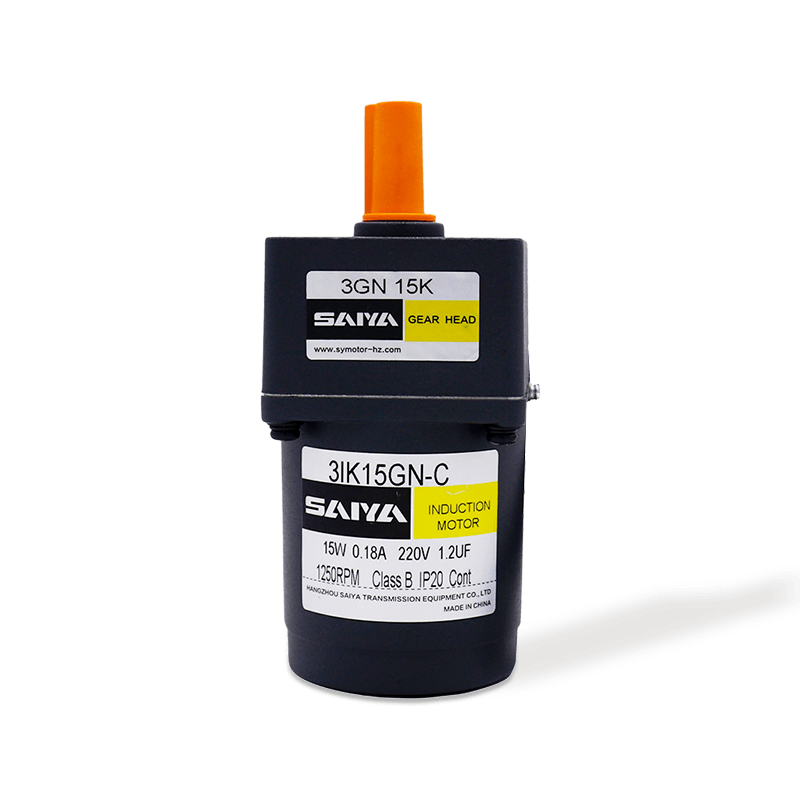

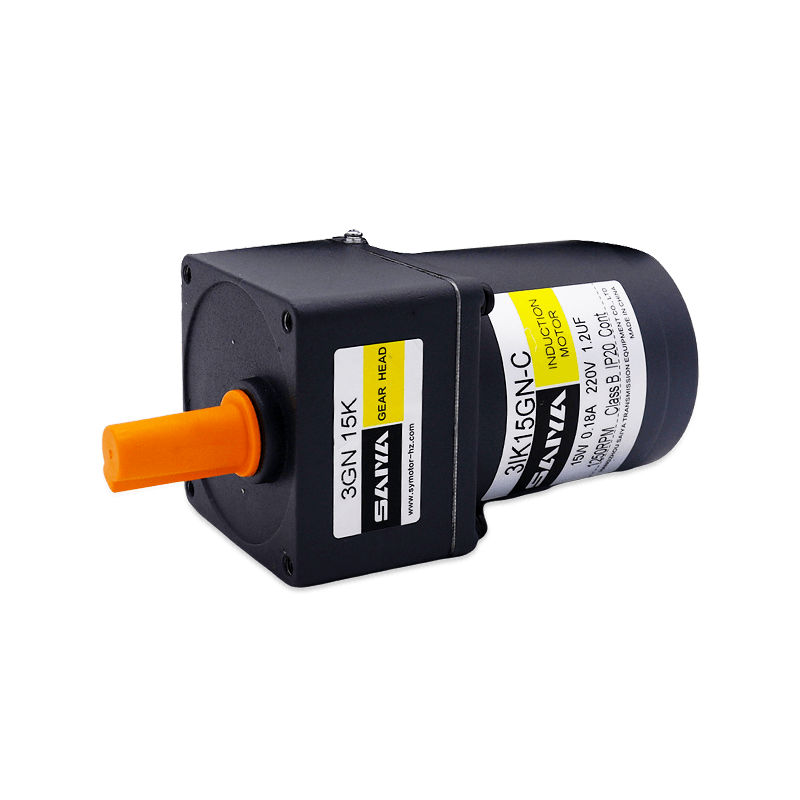

15W Induction Arcana Coepi Motors

Voltage Size: 15W, 70mmx70mm

Operating voltage: 1Ph 110v 3ph 220v /

Capacitor Capacititor Capacity: 1.2-6uf

Celeritas fundatur super Asynchronous celeritate electrica motricium (50Hz: 1200r / min, 60hz: 1450r / min)

  • 15W Induction Arcana Coepi Motors
  • 15W Induction Arcana Coepi Motors
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

Hoc 15W inductione AC calces motricium est efficient, pacto et reliable parva motor idoneam ad amplis industriae et familia applications.motor frame 70mm x 70mm faciens facile install in spatio-coactus environments. Potest esse in voltages vndique ex uno-phase 110v ad tres-phase 220v, quod est valde adaptabile in occursum necessitatibus diversis potentia systems.

Instructa cum capacitors inter 1.2 et 6uf ut lenis et efficientem operationem motricium. Eius celeritate fundatur super asynchronous celeritas motricium, quod est MCC revolutionibus per minute (R / min) ad 50Hz et MCDL revolutionibus per minute (R / Min) in diversis operantes environments.

Ob eius princeps efficientiam et reliability, haec motor est apta varietate apparatu et application missionibus, inter Automation apparatu, TRADUCTOR zonas, packaging apparatu et excudendi apparatu. Potest etiam providere sufficienti potestatem sub humilis potestate consummatio et est specimen coegi arbitrium pro industria, salvis apparatu. Usus summus qualis materiae et praecisione vestibulum vestibulum processus dat motricility et stabilitatem, reducing sustentationem costs et downtime.

Induction motricium Specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
PINGULUS Per hastile
3ik15gn-a 3ik15a-a 15 1Ph
100 		50 0.35 90 125 1200 6.0
60 0.33 85 105 1450
3ik15gn-E 3ik15a, E 15 1Ph
110 		60 0.30 65 105 1450 5.0
1Ph
120 		0.32
3ik15gn-c 3ik15a-c 15 1Ph
220 		50 0.18 90 125 1200 1.2
1Ph
230 		0.20
3ik15gn-h 3ik15a, h 15 1Ph
220 		60 0.16 65 105 1450
1Ph
230 		0.15 70
3ik15gn-s 3ik15a-s 15 3ph
220 		50 0.14 220 125 1200
60 0.12 180 105 1450

Reuersibe motricium specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Current
A 		Satus
Torque
mn.m 		Rated
Torque
mn.m 		Rated
Celeritate
R / min 		Capacitor
μf
PINGULUS Per hastile
3rk15gn-a 3rk15a-a 15 1Ph C 50 0.40 110 125 1200 7.0
60 0.56 105 105 1450
3rk15gn-E 3rk15a-E 15 1Ph110 60 0.43 85 105 1450 6.0
1Ph1220 0.42
3rk15gn-c 3rk15a-c 15 1Ph220 50 0.23 110 125 1200 1.5
1Ph230
3rk15gn-h 3rk15a-h 15 1Ph220 60 0.20 85 105 1450 1.5
1Ph230 90

Reversible motricium Specs

Model · Type
Duc Wire Type 		Output
potentia
W 		Voltage
V 		Frequentia
HZ 		Celeritate
Imperium
Range
R / min 		Allocacio torque Satus
Torque
mn.m 		Current
A 		Capacitor
μf
PINGULUS Per hastile 1200r / min
mn.m 		90r / min
mn.m
3ik15rgn-a 3ik15ra-a 15 1Ph
100 		50 XC ~ MCCCL 120 35 55 0.35 6.0
60 XC ~ MDCL 0.33
3ik15rgn-E 3ik15ba, f 15 1Ph
110 		60 XC ~ MDCL 125 35 55 0.30 5.0
1Ph
120 		0.32
3ik15rgn-c 3ik15ra-c 15 1Ph
220 		50 XC ~ MCCCL 120 35 54 0.18 1.2
1Ph
230 		0.20
3ik15rgn-h 3ik15ra-h 15 1Ph
220 		60 XC ~ MDCL 85 35 52 0.16 1.2
1Ph
230 		105 55 0.15

Motor-torque mensam

Gearhead et medium Gearbox potest vendidit seorsum.

Intra in calces Ratio in arca (□) intra exemplar nomine.

Colpha background □ indicat idem rotating directionem motricium dum rotating directionem aliorum oppositum.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus
Motricium / Gearhead 		Ratio Gear 3 3.6 5 6 7.5 9 12.5 15 18 25 30 36 50 60 75 90 100 120 150 180 200
Volo R / min 50Hz 500 417 300 250 200 166 120 100 83 60 50 41 30 25 20 16 15 12.5 10 8.3 7.5
60hz 600 500 360 300 240 200 144 120 100 72 60 50 36 30 24 20 18 15 12 10 9
3ik15gn-a
3ik15gn-E
3ik15gn-c
3ik15gn-h
3ik15gn-s 		3gn □ k 50Hz 0.30 0.36 0.51 0.61 0.76 0.91 1.3 1.5 1.8 2.3 2.7 3.3 4.1 5 5 5 5 5 5 5 5
3.06 3.67 5.20 6.22 7.75 9.28 13.2 15.3 18.3 23.4 27.5 33.7 41.8 50 50 50 50 50 50 50 50
60Hz 0.26 0.31 0.43 0.51 0.64 0.77 1.1 1.3 1.5 1.9 2.3 2.8 3.5 4.2 5 5 5 5 5 5 5
2.65 3.16 4.38 5.20 6.53 7.85 11.2 13.2 15.3 19.3 23.4 28.5 35.7 42.8 50 50 50 50 50 50 50

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type (inductione / Reversible motricium)

Weight: Motor: 1.1kg / Gearhead: 0,5kg

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura sunt idem quod ex Pionum Shaft genus.

Duc Wiring Type (fregit Motors)

Weight: Motor: 1.47KG / Gearhead: 0,5kg

Decimales Gearhead

Potest coniungi ad GN PINGULUS Type.

Pondus 0.3kg

Duc Wiring Type (celeritate Imperium Motors)

Weight: Motor: 1.2kg / Gearhead: 0,5kg

Gearhead Model Ratio Gear L1
3gn □ k III XVIII 32
XXV ~ CC 42

Intra in calces Ratio in arca (□) intra exemplar nominis
