Pingues DC calces motors

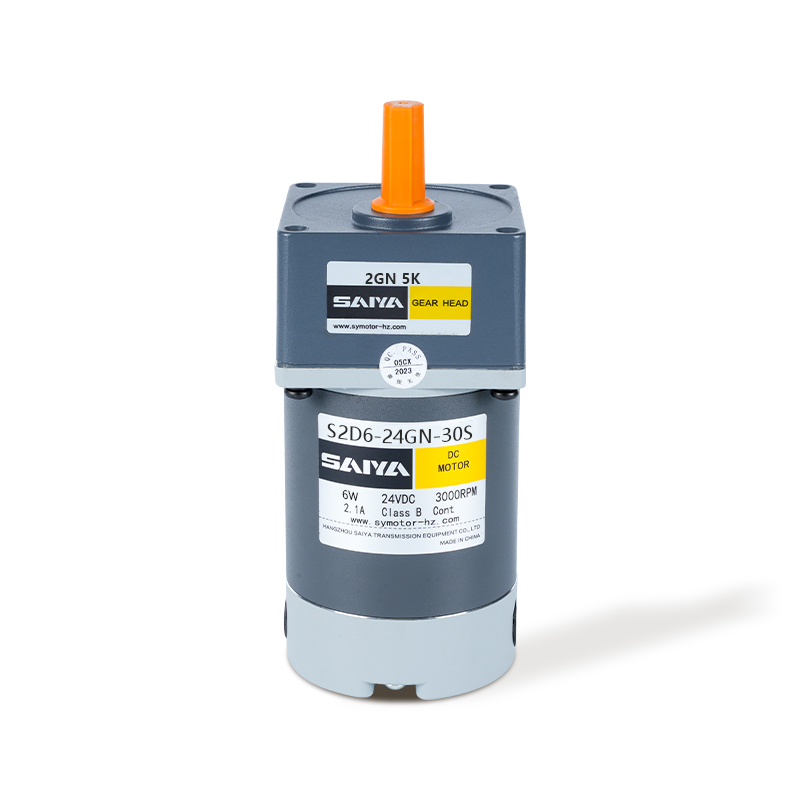

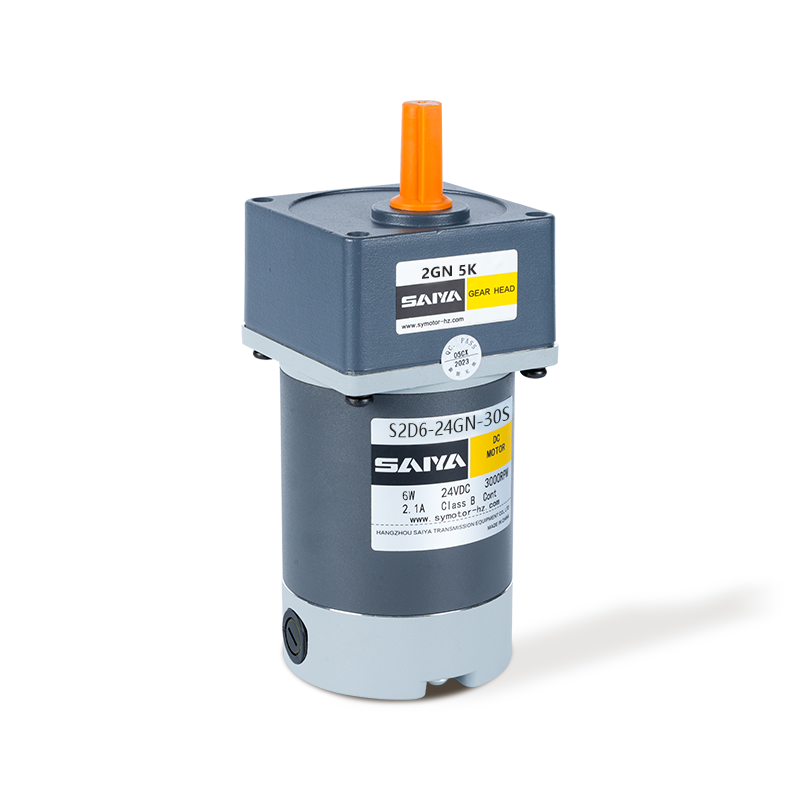

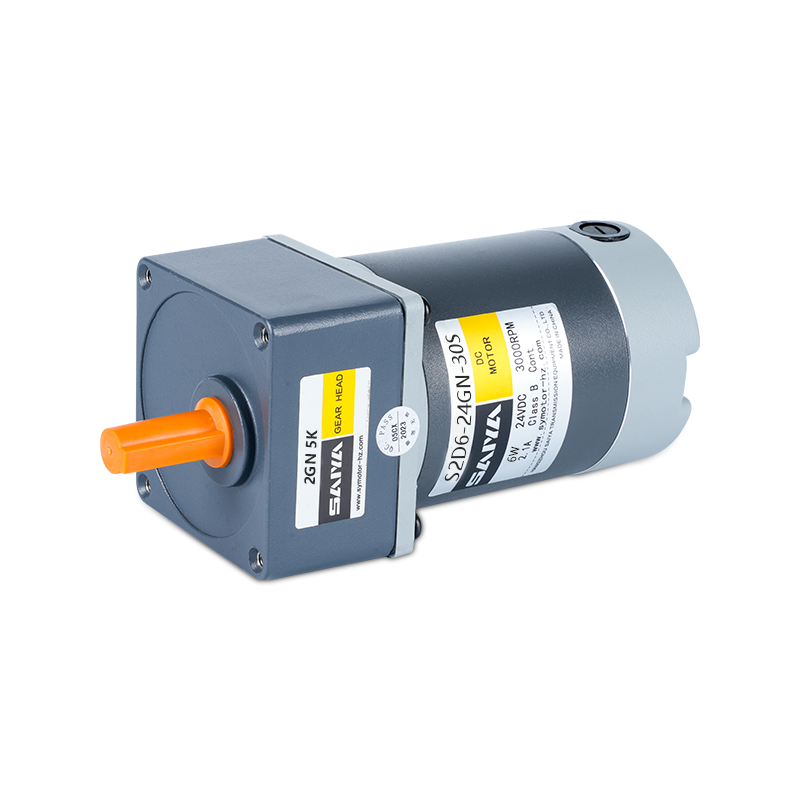

6W Peniculus DC Motors

Voltage Size: 6W, 60mmx60mm

Operating voltage: 12-90v

Nulla Lond Mare: Volo 3000-3200RPM

Usus current: 0.2-0.6a

Lond parametri: Gyratoria celeritate 2800-2950rpm

Usus current: 0.3-0.8a

Torque: 19-20mn.m

  • 6W Peniculus DC Motors
  • 6W Peniculus DC Motors
  • 6W Peniculus DC Motors
PRAECEDENS   |   Nullus articulus proximus

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

In 6W Peniculus DC GBear motor est disposito ad efficientiam et versatility, idoneam variis applications. Cum pacto frame mole 60mm x 60mm, id convenit seamlessly in stricta spatia. Motricium operates intra voltage range 12-90v faciens adaptabile diversis virtutis fontibus.

Sub nullus onus condiciones, motricium Achieves celeritas 3000-3200 RPM et trahit current de 0.2-0.6a. Cum autem onus applicantur, celeritas leviter decrescit ad 2800-2950 rpm, cum current consummatio vndique inter 0.3-0.8a. Quamvis haec levi variationes, motor maintains a torque output de 19-20mn.m, cursus consistent perficientur.

Hoc motricium scriptor robustus consilio et certa operatio facere idealis pro applications requiring precise imperium et sustinuit torque. Est ad robotics, TRADUCTOR systems, et parva machina ubi consistent celeritas et torque sunt discrimine. Et wide operating voltage et current range offer offer flexibilitate, faciens compatible cum variis electronic moderatoris et potentia commeatus.

In 6W Peniculus DC calces motricium est potens et adaptabile arbitrium, tradens Disciplines perficientur efficientiam et postulat tasks.

VI w motricium perficientur parametri

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S2D06-12 □ 12 6 3200 0,6 max. 2950 19 0.8 2000 0.6
S2DW06-12 □ 12 6 3200 0,6 max. 2950 19 0.8 2000 0.6
S2D06-24 □ 24 6 3200 0,3 max. 2950 19 0.5 2000 0.6
S2DW06-24 □ 24 6 3200 0,3 max. 2950 19 0.5 2000 0.6
S2D06-90 □ 90 6 3000 0,2 max. 2800 20 0.3 2000 0.6
S2DW06-90 □ 90 6 3000 0,2 max. 2800 20 0.3 2000 0.6

10W motor perficientur parametri

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S2D10-12 □ 12 10 3200 1.0 max. 2800 34 2.0 2000 0.7
S2DW10-12 □ 12 10 3200 1.0 max. 2800 34 2.0 2000 0.7
S2D10-24 □ 24 10 3300 0,5 max. 3000 32 0.9 2000 0.7
S2DW10-24 □ 24 10 3300 V MAX 3000 32 0.9 2000 0.7
S2D10-90 □ 90 10 3200 0,3 max. 2800 34 0.6 2000 0.7
S2dw10-90 □ 90 10 3200 0,3 Max. 2800 34 0.6 2000 0.7

15W motor perficientur parametri

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S2D15-12 □ 12 15 3200 VIII max 2950 48 2.0 2000 0.9
S2DW15-12 □ 12 15 3200 0,8 max. 2950 48 2.0 2000 0.9
S2D15-24 □ 24 15 3300 0,4 max. 3000 48 1.0 2000 0.9
S2DW15-24 □ 24 15 3300 0,4 max. 3000 48 1.0 2000 0.9
S2D15-90 □ 90 15 3200 0,2 max. 3000 48 0.4 2000 0.9
S2dw15-90 □ 90 15 3200 0,2 max. 3000 48 0.4 2000 0.9

Motor voltage potentia et celeritas erit customized secundum petitionem sub licere re adoptable dimensionem.

Weuse aqua din modus toexpressthe exterius motricium, ut Z2DW06-12GN.Now, id est vexillum internus motricium ad externum penicillo motor possis reponere ad penicillo directe. Nam internum ones, opus est disassemble in engine.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus Ratio Gear 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
S2d06-24gn Volo R / min 983 819 590 492 393 328 295 236 197 164 148 118 98 82 74 59 49 39 33 30 25 20 16 15
2gn □ k 0.05 0.06 0.08 0.09 0.12 0.14 0.16 0.20 0.24 0.28 0.28 0.35 0.42 0.51 0.57 0.71 0.76 0.96 1.15 1.27 1.53 1.91 2.29 2.55
0.46 0.56 0.77 0.93 1.16 1.39 1.54 1.93 2.31 2.78 2.78 3.47 4.16 5.00 5.55 6.94 7.49 9.37 11.2 12.5 15.0 18.7 22.5 25.0
S2d10-24gn Volo R / min 1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
2gn □ k 0.08 0.09 0.13 0.15 0.19 0.23 0.26 0.32 0.39 0.46 0.46 0.58 0.70 0.84 0.93 1.16 1.25 1.75 1.88 2.09 2.51 3.00 3.00 3.00
0.76 0.91 1.26 1.52 1.90 2.27 2.53 3.16 3.79 4.55 4.55 5.69 6.82 8.19 9.10 11.4 12.3 15.4 18.4 20.5 24.6 30.0 30.0 30.0
S2d15-24gn Volo R / min 1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
2gn □ K 0.12 0.14 0.19 0.23 0.29 0.35 0.39 0.48 0.58 0.70 0.70 0.87 1.04 1.25 1.39 1.74 1.88 2.35 2.82 3.00 3.00 3.00 3.00 3.00
1.14 1.36 1.90 2.27 2.84 3.41 3.79 4.74 5.69 6.82 6.82 8.53 10.23 12.28 13.65 17.1 18.4 23.0 27.6 30.0 30.0 30.0 30.0 30.0

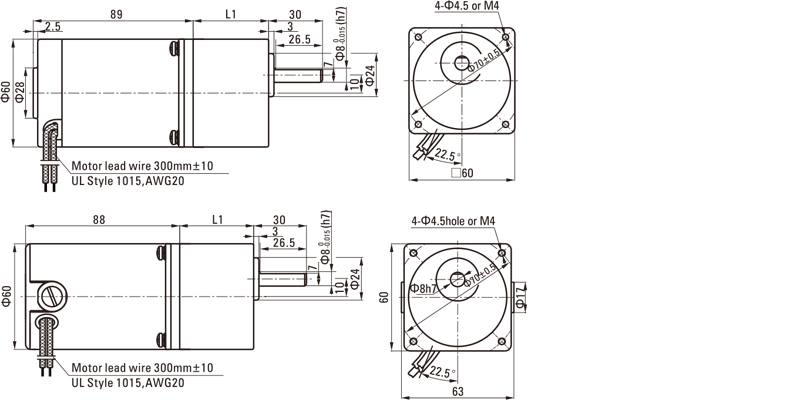

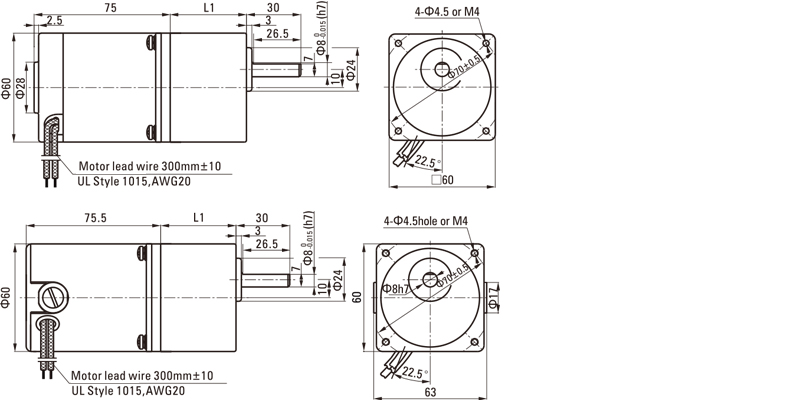

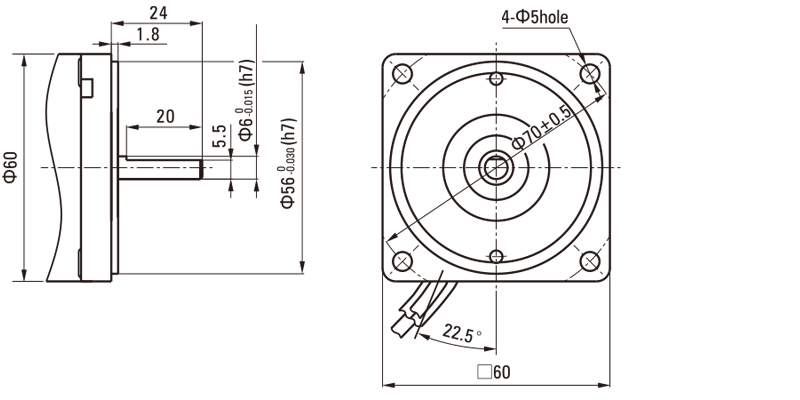

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type (inductione / Reversible motricium)

6W: Weight: Motor: 0,6KG / Gaerhead: 0.4kg | 10W: Weight: Motor: 0.7kg / Gearhead: 0.4kg

Type Type Type Shaft

Exclusa pondus et tectis sectionem motricium figura est idem quod de pignum sagitta genus.

Duc Wiring Type

15W: Weight: Motor: 0.9kg / Gearhead: 0.4kg

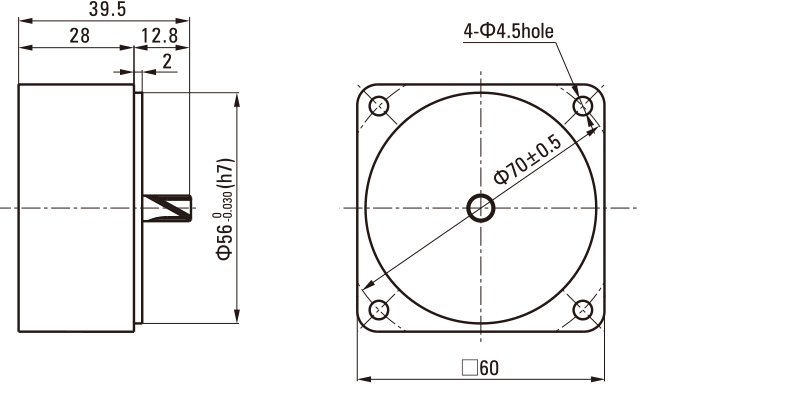

Decimales Gearhead

Potest esse coniuncta GN PINGULUS Type.

Gearhead Model Ratio Gear L1
2gn □ k III XVIII 32
XXV ~ CC 41

Intra in calces Ratio in arca (□) intra exemplar nominis.
