  • 120W Peniculus DC Motors
  • 120W Peniculus DC Motors
Pingues DC calces motors

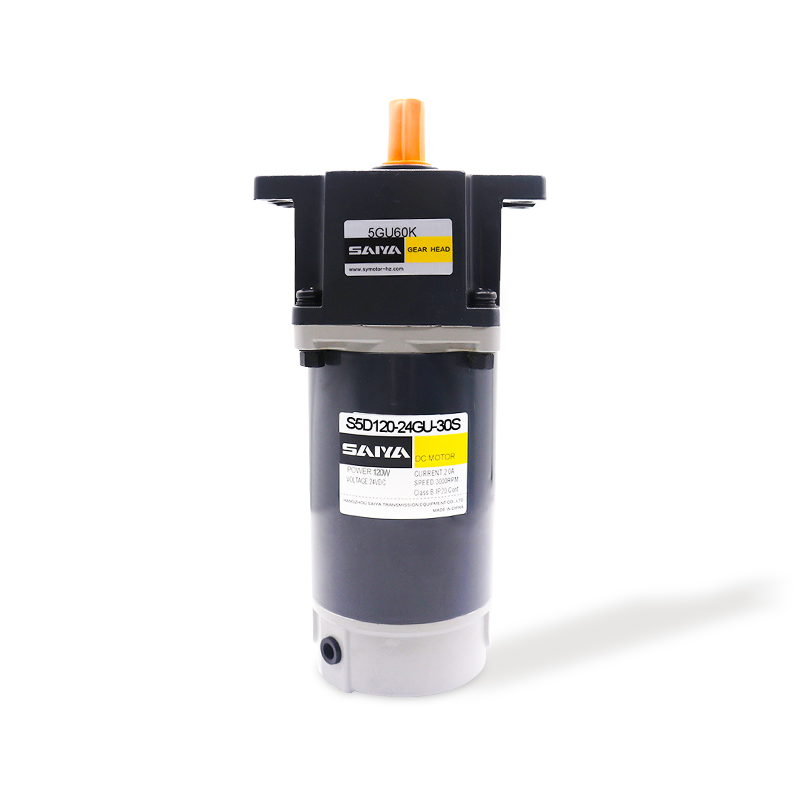

120W Peniculus DC Motors

Voltage Size: 120w, 90mmx90mm
Operating voltage: 12-90v
Nulla Lond Mare: Volo 3000-3200RPM
Usus current: 0.3-2.0a
Lond parametri: Gyrationali celeritas 2500-2600RPM
Current Used: 2.0-15.0a
Torque: 441-458Mn.M

  • 120W Peniculus DC Motors
  • 120W Peniculus DC Motors
PRAECEDENS   |   DEINDE

+ Contacta nos + Catalogus Deprehensus Video Producti
APPLICATIO AREA
Societas technologiae altae sumus, productioni et venditioni motorum reductorum AC, motorum reductorum parvorum, reductorum planetariorum servo-specificorum, motorum DC sine spazzolis et sine spazzolis, aliorumque productorum dedicata.

  • Logistics Sorting

  • Automated Robots

  • laser secans

  • Aditus imperium porta

  • Photovoltaic Power Station

  • Medicinae cogitationes

  • AGV

Descriptio Producti

Et 120W Peniculus DC calces motricium praebet princeps perficientur et adaptability, perfectum ad a range of Industrial et Hobbyist Applications. Cum a frame magnitudinem 90mm x 90mm, hoc motricium disposuerat aptare in angustiis sine comproming in potestate. Est operates in wide voltage range of 12-90v, providing flexibilitate pro variis potestate sources et imperium systems.

In non-onus condiciones, motricium fugit ad celeritatem 3000-3200 RPM, drawing a current inter 0.3-2.0a. Cum sub onus, celeritas decrescit leviter ad 2600-2900 RPM, cum correspondentes current ducatur 2.0-15.0a. Hoc motricium liberabit a torque 441-458mn.m, ensuring illud potest tractare postulatum negotium cum otium.

Et 120W Peniculus DC calces motor est specimen pro applications quod requirere praecise celeritate et torque imperium. Est idoneam usum in robotics, automated systems, parva machinery, et alia projects, ubi reliability et perficientur sunt. Motor scriptor lata voltage et current iugis augendae eius compatibility cum diverse electronic moderatoris et virtute setups.

40W motor perficientur parameter

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S5D40-12 □ 12 40 3100 2.0 max. 2800 136 5.2 2000 1.9
S5D40-24 □ 24 40 3000 1.0 max. 2800 136 2.6 2000 1.9
S5D40-90 □ 90 40 3200 0,3 max. 3000 127 0.7 2000 1.9

60W Motor perficientur parameter

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S5D60-12 □ 12 60 3000 2.0 max. 2600 220 9.0 2000 2.2
S5D60-24 □ 24 60 3100 1.0 max. 2800 205 3.8 2000 2.2
S5d60-90 □ 90 60 3100 0,3 max. 2900 198 1.0 2000 2.2

90w motor perficientur moderna

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S5D90-12 □ 12 90 3100 2.0 max. 2600 330 12.0 2000 2.2
S5D90-24 □ 24 90 3300 1.0 max. 2800 307 5.0 2000 2.2
□ S5D90-90 90 90 3000 0,3 max. 2900 307 1.4 2000 2.2

120W motor perficientur parameter

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S5D120-12 □ 12 120 3100 2.0 max. 2500 458 15.0 2000 2.2
S5D120-24 □ 24 120 3200 1.0 max. 2600 441 7.0 2000 2.2
□ s5d120-90 90 120 3000 0,3 max. 2600 441 2.0 2000 2.2

250W motor perficientur parameter

Exemplar Voltage Potentia Non-onus parametri Lond parametri Peniculus vitae Motor Weight
Celeritate Current Celeritate Torque Current
V W R / min A R / min mn.m A H kg
S55D250-24 □ 24 250 3400 3,0 max. 3000 796 16.0 2000 3.2
S55d250-90 □ 90 250 3300 1.2 max. 3000 796 4.2 2000 3.2
S55d250-220 □ 220 250 3300 0,9 max. 3000 796 2.2 2000 3.2

Motricium intentione, potestas et celeritas mos secundum placitum sub licere re adoptable dimensionem.

Allocacio torque Unit: Versus (N.M) / Fexthefide (KGF.CM)

Genus Ratio Gear 3 3.6 5 6 7.5 9 10 12.5 15 18 20 25 30 36 40 50 60 75 90 100 120 150 180 200
S5d40-24gn

Celeritate

R / min

933 778 560 467 373 311 280 224 187 156 140 112 93 78 70 56 47 37 31 28 23 19 16 14
5gn □ k 0.33 0.4 0.55 0.66 0.83 0.99 1.11 1.38 1.66 1.79 1.99 2.49 2.98 3.58 3.58 4.48 5.37 6.71 8.06 8.95 10 10 10 10
3.25 3.9 5.41 6.5 8.12 9.75 10.8 13.5 16.2 17.5 19.5 24.4 29.2 35.1 35.1 43.9 52.6 65.8 78.9 87.7 100 100 100 100
S5d60-24gu

Celeritate

R / min

933 778 560 467 373 311 280 224 187 156 140 112 93 78 70 56 47 37 31 28 23 19 16 14
5Gu □ MB 0.5 0.6 0.83 0.99 1.24 1.49 1.49 1.86 2.24 2.69 2.69 3.36 4.03 4.83 5.37 6.71 8.06 10.1 10.9 12.1 14.5 18.1 20 20
4.87 5.85 8.12 9.75 12.2 14.6 14.6 18.3 21.9 26.3 26.3 32.9 39.5 47.4 52.6 65.8 78.9 98.7 107 118 142 178 200 200
S5d90-24gu

Celeritate

R / min

933 778 560 467 373 311 280 224 187 156 140 112 93 78 70 56 47 37 31 28 23 19 16 14
5Gu □ MB 0.75 0.9 1.24 1.49 1.86 2.24 2.24 2.8 3.36 4.03 4.03 5.03 6.04 7.25 8.06 10.1 12.4 15.1 16.3 18.1 20 20 20 20
7.31 8.77 12.2 14.6 18.3 21.9 21.9 27.4 32.9 39.5 39.5 49.3 59.2 71.1 78.9 98.7 118 148 160 178 200 200 200 200
S5d120-24gu

Celeritate

R / min

867 722 520 433 347 289 260 208 173 144 130 104 87 72 65 52 43 35 29 26 22 17 14 13
5Gu □ MB 1.07 1.29 1.79 2.14 2.68 3.21 3.21 4.02 4.82 5.78 5.78 7.23 8.68 10.4 11.6 14.5 17.4 20 20 20 20 20 20 20
10.5 12.6 17.5 21 26.2 31.5 31.5 39.4 47.2 56.7 56.7 70.9 85 102 113 142 170 200 200 200 200 200 200 200
S5d250-24gu

Celeritate

R / min

1000 833 600 500 400 333 300 240 200 167 150 120 100 83 75 60 50 40 33 30 25 20 17 15
5Gu □ KB 1.93 2.32 3.22 3.87 4.83 5.8 5.8 7.25 8.7 10.4 10.4 13.1 15.7 18.8 20 20 20 20 20 20 20 20 20 20
19 22.7 31.6 37.9 47.4 56.9 56.9 71.1 85.3 102 102 128 154 184 200 200 200 200 200 200 200 200 200 200

Dimensiones (unit mm)

Adscendens Cochleas sunt includitur cum Geerhead.

Duc Wiring Type

40W: Weight: Motor: 1.9kg / Gearhead: 1.35kg

60W / 90w / 120w: Weight: Motor: 2.2kg / Gaerhead: 1.5kg

250W: Weight: Motor: 3.2kg / Gearhead: 1.5kg

40W

Gearhead Model Ratio Gear L1
5gn □ k III XVIII 32
XXV ~ CC 42.5

60W / 90w / 120W / 250W

Gearhead Model Ratio Gear L1
5Gu □ MB CC ~ CC 65.5

Intra in calces Ratio in arca (□) intra exemplar nomine.

Type Type Type Shaft

Exclusa pondus et section sectionem motricium figura est idem quod de pignum sagitta genus.

Decimales Gearhead

Potest esse coniuncta GN PINGULUS Type
5gn1x
40W pondus: 0.41kg

60W / 90w / 120W / 250W pondere: 0.651kg

LABLE ascendens reducer

Potest mounted in gu type calces sagittam 5gu □ k
40W pondus: 0.41kg
60W / 90w / 120W / 250W

Key ● Keyway (Key est includitur cum Geerad)
